1. 2D menu, clear and easy to choose

2. Powerful search function

3. Convenient modification of ECU data

4. USB communication, with a speed more than three times that of Android devices, making it more stable

5. Easy to copy data

6. Support engine data validation function

Software download link: https://en.cnlaunch.com/download

Launch X431 ECU Progarmmer Functions:

1. ECUs Data Reading & Writing quickly.
· Support two methods to read various vehicle brand ECUs info.
· Support Read the chip ID and Back up the EEPROM data.
· Support Back up the FLASH data and Restore EEPROM/FLASH data2. Support Data Processing, anti-theft shutdown and file verification.

ECU Support list June 2026:

ECU Name	ECU Type	ECU Brand	FLEX
EDC16XX	ECM	Bosch	Support
EDC17XX	ECM	Bosch	Support
MD1CSXXX	ECM	Bosch	Support
MD1CPXXX	ECM	Bosch	Support
ME17.X.X	ECM	Bosch	Support
MED17.X.X	ECM	Bosch	Support
MED9.X.X	ECM	Bosch	Support
MEV17.X.X	ECM	Bosch	Support
MEVD17.X.X	ECM	Bosch	Support
MG1CSXXX	ECM	Bosch	Support
MG1CPXXX	ECM	Bosch	Support
MSDXX	ECM	CONTINENTAL/SIEMENS	Support
MSVXX	ECM	CONTINENTAL/SIEMENS	Support
SDIX	ECM	Continental	Support
GM EXX/TXX	ECM	DELCO	Support
SIM271XX	ECM	Continental	Support
SIMOS12.X	ECM	Continental	Support
SIMOS8.X	ECM	Continental	Support
SIMOS-PCR2.X	ECM	Continental	Support
6HPXX	TCM	ZF	Support
8HPXX	TCM	ZF	Support
7DCT300	TCM	ZF	Support
9G Tronic	TCM	Bosch	Support
ALXXX	TCM	ZF	Support
TCXX	TCM	Bosch	Support
DPS6/DC4	TCM	GETRAG	Support
DKG	TCM	GETRAG	Support
DLXXX	TCM	Temic	Support
DQXXX	TCM	Temic	Support
MPS6	TCM	GETRAG	Support
SPS6	TCM	GETRAG	Support
VGSX	TCM	GETRAG	Support
VL381	TCM	Temic	Support
GM 6TXX/6LXX	TCM	DELCO	Support
MEDG17.9.8	TCM	Bosch	Support
MEG17.9.2	TCM	Bosch	Support

Launch X431 ECU TCU Programmer and PC Software Use Guide:

Firstly, connect the X431 ECU &TCU Programmer to the computer with a cable. Then, click to enter the software. The serial number will be automatically recognized from the X-431 ECU &TCU Programmer, and the activation code needs to be obtained from the envelope bar of the X-431 ECU&TCU Programmer.

Click [Activate] to activate (only activate once, no need to activate again later), as shown in Figure 1. Without connection, you cannot access the software, as shown in Figure 2.

I. ECU Date Reading and Writing:

1. Obtain the  related  ECU.

Method (1) :

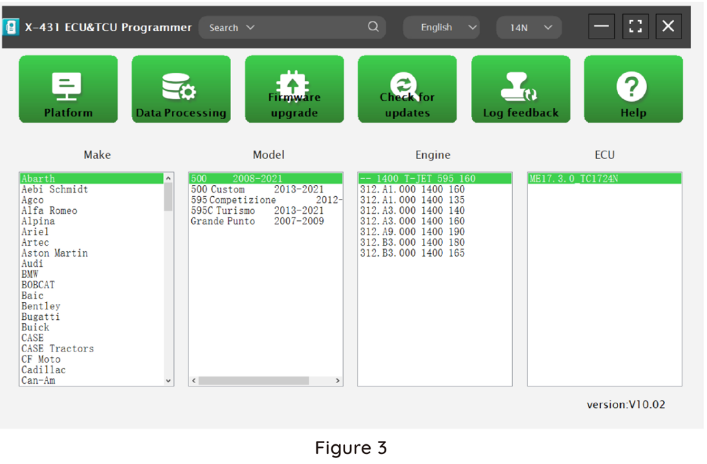

Obtain the desired ECU type through brand > model > engine > ECU in turn, as shown in Figure 3.

Method (2) :

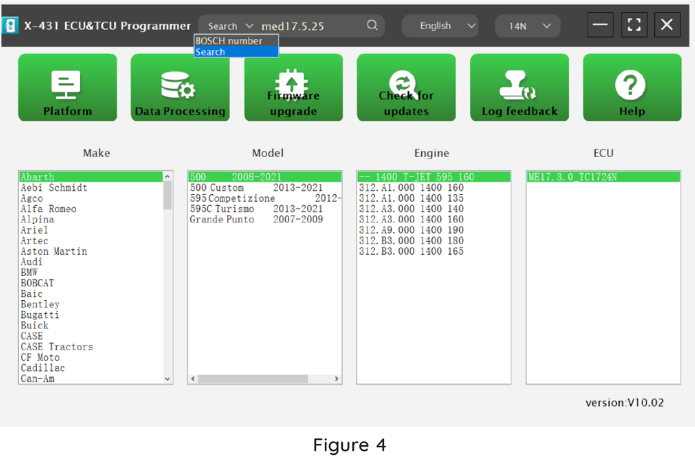

Query the desired ECU by entering a value in the search box. The search categories include Bosch number and Search, as shown in Figure 4. For example, search for the MED17.5.25 engine by Search, as shown in Figure 5.

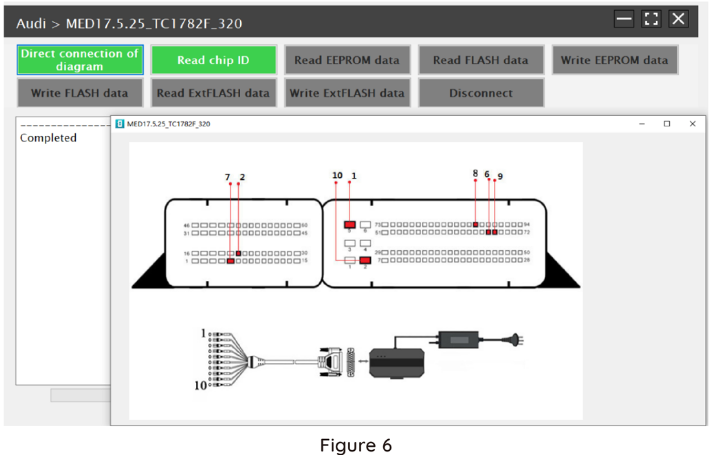

2.Click [Direct Connection Diagram] to obtain the ECU connection diagram, as shown in Figure 6.
3. Connection:

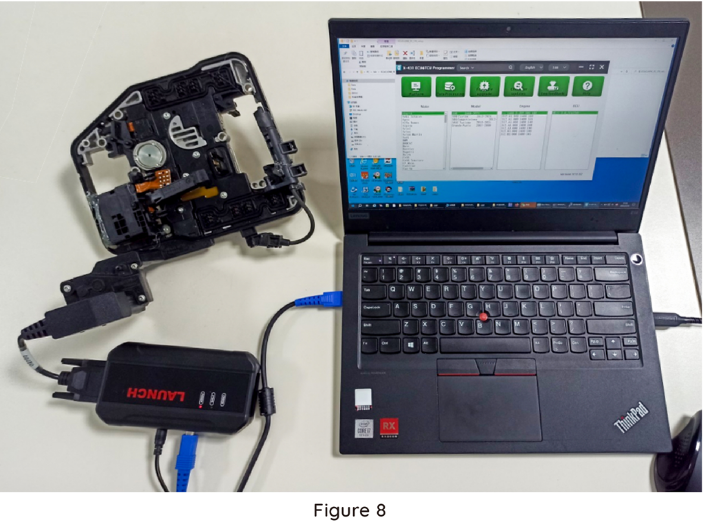

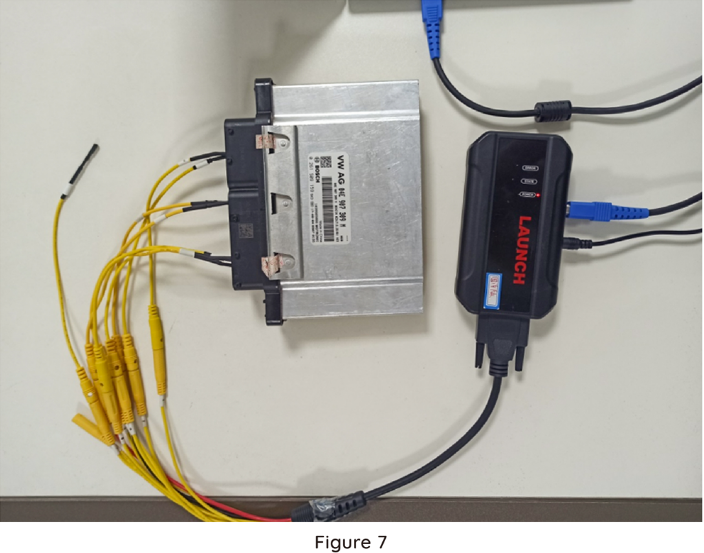

Connect  the  ECU and PCBOX according  to the  information provided in the connection diagram.  The physical connection diagram of MED17 .5 .25 (using the BENCH mode line)is shown in Figure 7, and the physical connection diagram using the gearbox adapter is shown in Figure  8.

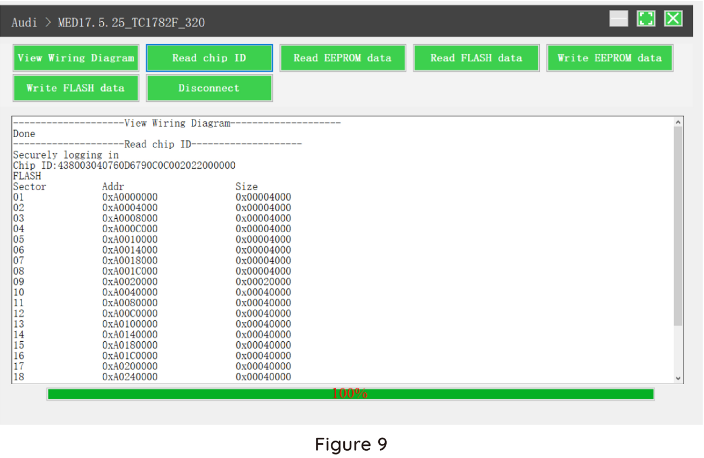

4. Read the chip ID, as shown in Figure 9.

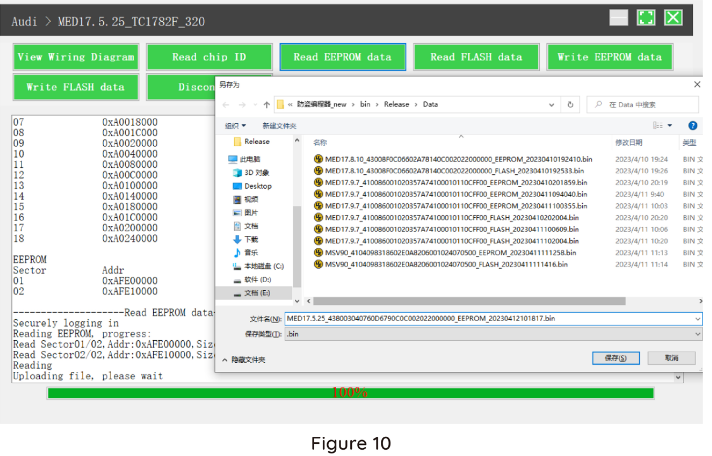

5. Back up the EEPROM data and save it, as shown in Figure 10 (the figure shows the save page of the read date).

6. Back up the Flash date and save it, as shown in Figure 11 (the figure shows the process of reading FLASH date).

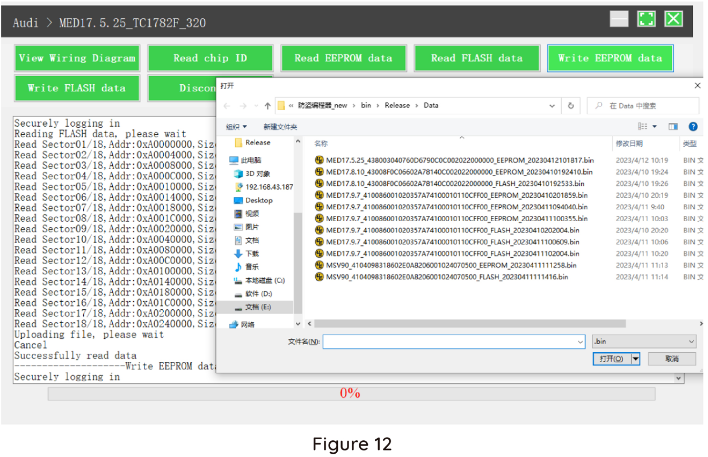

7. Restore EEPROM / FLASH date,  as shown in Figure 12 (the figure shows the file selection page).

II. Date Processing

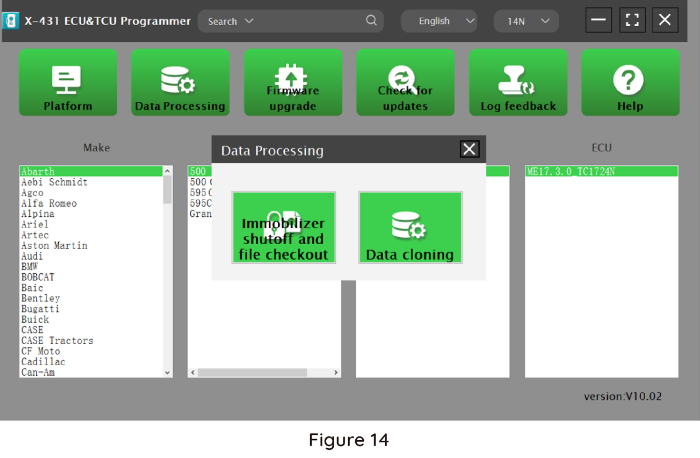

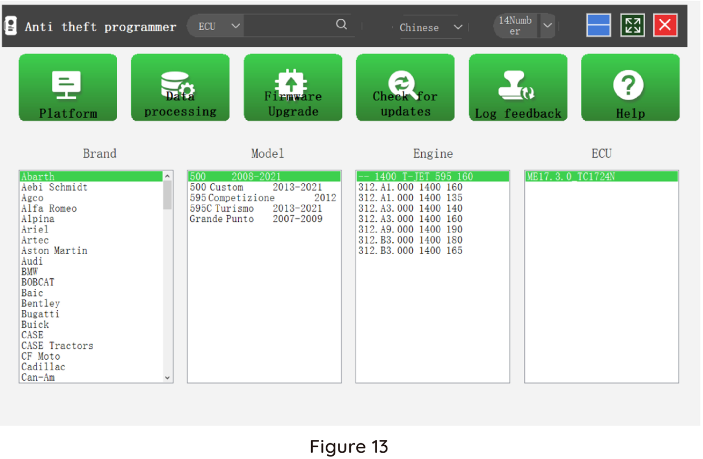

1. Click the [Date Processing] button on the main page, as shown in Figure 13, and select [IMMO Off and File Verification] ([DTC Shield] is not currently supported), as shown in Figure 14.

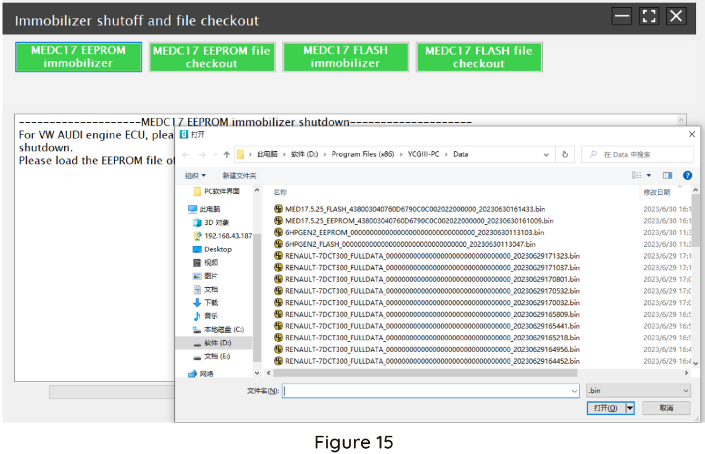

2. File verification and IMMO OFF (process: select file>connect network to obtain>save file), as shown in Figure 15.

Package Includes:

1pc x Launch X431 ECU Module Cloning Device
