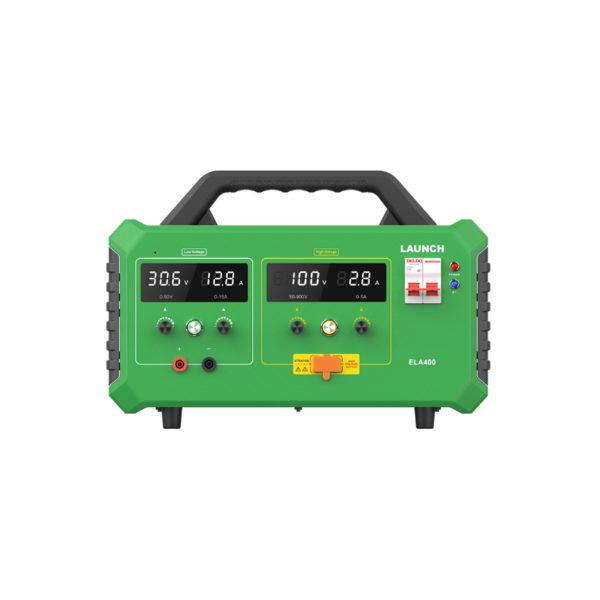

LAUNCH ELA400 Digital Power Supply for Automotive Repair Intelligence

Description

LAUNCH ELA400 Digital Power Supply for Automotive Repair Intelligence

Discover this state-of-the-art power supply that combines precision and reliability with high performance. Designed for a maximum output of 4,000 W. This ELA400 Digital Power Supplies is designed to fulfil a wide range of electrical requirements with ease and precision. Ideal for demanding applications that require both high and low voltage and current settings, this power supply is your reliable partner for precise and versatile power supply solutions. You can rely on its features and robust design for your projects and laboratory requirements.

Features:

1. Supports low voltage outputs from 0v to 50ov and up to 15a
2. In combination with X-431 Euro TAB III
3. Overvoltage, undervoltage, short circuit and temperature protection in the voltage input
4. Maximum power of 4,000 W
5. Separate high- and low-voltage circuits: The high-voltage circuits and the low-voltage circuits are fused separately and can be operated independently of each other. This allows each circuit to be managed, maintained and monitored separately.
6. Independent protection mechanism: The input circuit, the high-voltage output circuit and the low-voltage output circuit each have an independent protection mechanism. The system recognises and reacts to problems such as undervoltage, overvoltage, overcurrent and short circuit and initiates appropriate protective measures. In the event of a malfunction, an audible alarm is emitted.

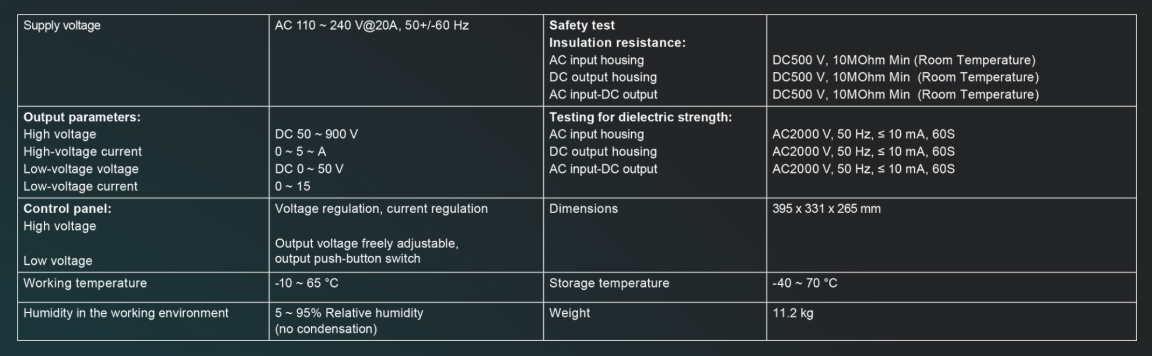

Technical Profile

Precision:
Output Voltage 1 V
Ouutput Current 0.1 A

Display:
8 Segment LED Display

Package includes:
