LAUNCH X431 Creader Elite For Audi Professional Full System Diagnostic Tools Online ECU Coding 31+ reset Function OBD2 Scanner
AUNCH X431 Creader Elite For Audi Professional Full System Diagnostic Tools Lifetime Free Update with 31+ Reset Function 1 Year free Update , supports Online & Offline ECU Coding , Active Test to the New car before 2022 Year OBD2 Code reader scanner with 11 Languages

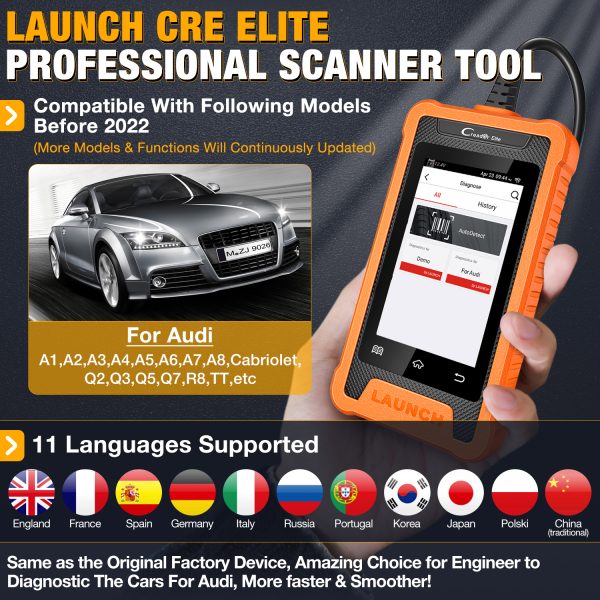

LAUNCH X431 Creader Elite For Audi Diagnostic Tool supports car list : 5054A
Support All for Audi cars before 2022 Year , including : For Audi A1, For Audi A2, For Audi A3, For Audi A3 USA/CDN, For Audi A4, For Audi A4 USA/CDN, For Audi A5, For Audi A5 USACDN, For Audi A6, For Audi A6 USA/CDN, For Audi A7, For Audi A7 USA/CDN, For Audi A8, For Audi A8 USA/CDN, For Audi Cabriolet, For Audi Cabriolet USAICDN, For Audi E-tron, For Audi E-tron USACDN, For Audi Q2, For Audi Q3, For Audi Q3 USA/CDN, For Audi Q5, For Audi Q5 USA/CDN, For Audi Q7, For Audi Q7 USA/CDN, For Audi Q8, For Audi Q8 USA/CDN, For Audi R8, For Audi R8 USACDN, For Audi TT, For Audi TT USA/CDN
LAUNCH X431 Creader Elite For Audi supports Languages : vas
English, French, Spanish, German, Italian, Russian, Portuguese, Korean, Japanese, Polish, Traditional Chinese .
LAUNCH X431 Creader Elite For Audi Diagnostic Tool is an evolutionary smart code reader for professional technicians or DIYers. It only applies to the passenger cars with 12V battery voltage .
LAUNCH X431 Creader Elite For Audi Diagnostic Tool is specially designed to work with all OBDII compliant vehicles For Audi, including Controller Area Network (CAN). It is required by EPA that all 1996 and newer vehicles ( cars and light trucks ) sold in the United States must be OBD II compliant and this includes all American , Asian and European vehicles .

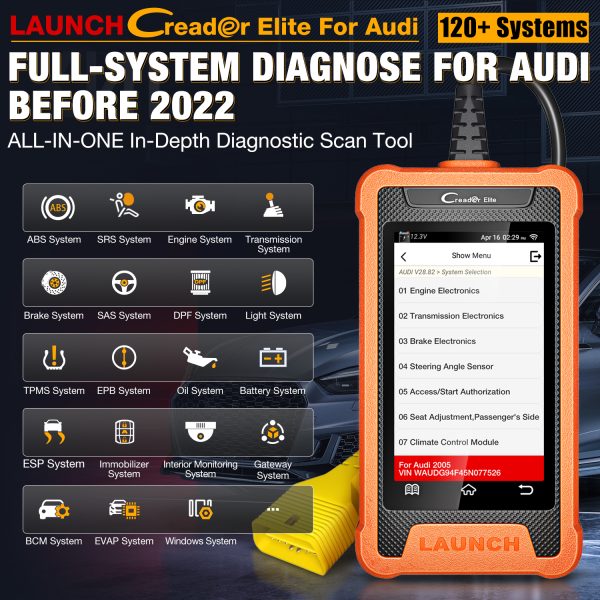

LAUNCH X431 Creader Elite For Audi Supports All Systems Full Diagnostic Function :
All Systems Including : ABS System, Engine System, SAS System, TPMS System, IMMO System, Battery System, Oil Service System, SRS System, DPF System，Air Conditioning System，Transmission System……….
Full Diagnostic Function :
–read fault codes: read and decode the DTCs to identify where the fault location is;
–clear fault codes: erase the DTCs to turn off the MIL after repairs;
–retrieve ecu information: allows you to retrieve vehicle information;
–Graph live data stream: view the dynamic data stream to determine vehicle condition
–Freeze Frame: it will record the information of the vehicle running status at the moment when the fault occurs to confirm the fault.
–Vehicle information: such as Vehicle Identification Number (VIN), Calibration Mark (CALID) and Calibration Verification Number (CVN) .
–Online & Offline ECU Coding: generally used for cars after replacing second-hand parts, then it can work .
–Active Tester( Bi-Directional Control ): to test whether the actuators of each system are normal, for analysis
–Special Function: more than 31+ reset function , like airbag reset, AF Adjustment, DPF reset………
LAUNCH X431 Creader Elite For Audi Supports Online & Offline ECU Coding :
The advanced coding function is used to re-flash the vehicle control modules, which allows you to update the computer software on the vehicle to the latest version, as well as to reprogram adaptive data for certain components after making repairs or replacements, providing solutions for the issues of drivability, fuel efficiency, power loss, fault codes, durability of mechanical parts etc. But please note, ecu coding are NOT universal for all vehicles, please check compatibility with VIN number before purchase.
LAUNCH X431 Creader Elite For Audi Supports Active Tester( Bi-Directional Control ) :
Bi-Directional Control capability and is capable of performing Active Tests to access vehicle-specific subsystems and component tests. The tester outputs commands to the ECU to drive the actuators in order to determine the integrity of the system or parts by reading the ECU data, or by monitoring the operation of the actuators .For example , x431 v have the ability to actuate relays, injectors, coils, or perform system tests, etc. Also it will actuate solenoids valve and actuators for active testing to identify the error easily moreover. The bidirectional functions are quite extensive. even open an e.g.r. valve and seeing the difference in idle response and oxygen sensor voltage. Please note: Active tests are NOT universal for all vehicles, check compatibility with VIN number before purchase. Active tests vary depending on the manufacturer, year, and model, and only the available tests display in the menu.
LAUNCH X431 Creader Elite For Audi Supports 31+Reset Function :
1. Steering Angle Reset
Reset the steering angle to zero to keep the car running straight.
2. Injector Coding
Write the new injector code into the car system for the correct cylinder injection quantity.
Disable any lost keys and add new keys. **ONLY for cars with an easy IMMO system.
4. DPF Regeneration
Especially works for D-P-F system with D-P-F regeneration, D-P-F component replacement teach-in and D-P-F teach-in after replacing the engine control unit.
5. A/C relearn
The vehicle air conditioner replaces the electronic control unit, replaces the actuator or the memory of the electronic control unit memory is lost, and requires air conditioning initialization learning.
6. ABS Bleeding
Help exhaust the air after repair the ABS pump system.
7. AdBlue Reset
Reset urea after the diesel exhaust treatment fluid is replaced or filled up.
8. Throttle Matching
Initialize the throttle actuators to the default state.
9. TPMS Reset
Makes sense in displaying sensor IDs from the vehicle’s ECU, inputting TPMS sensor replacement IDs and testing sensors.
10. Tire Reset
Set the size parameters of the modified or replaced tire.
11. AFS Headlamp Reset
Initialize the adaptive headlamp system.
12. Sunroof Initialization
Initialize the sunroof when locked off or closed.
13. Battery Reset
Register the battery after replacement.
14. Seat Calibration
Calibrate the memory in replaced or repaired seats.
15. Oil Reset
Allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.
16. A/F Reset:
Set or learn Air/Fuel ratio parameters.
17. GEARBOX LEARN
Help complete the gearbox self-learning to improve gear shifting quality.
18. Transport Mode
Deactivate the transport mode.
19. Windows Calibration
Perform door window matching to recover ECU initial memory.
20. Language Change
Change vehicle system language.
21. Suspension Reset
Adjust the vehicle body height sensor for level calibration.
22. NOx Sensor Reset
Reset catalytic converter learned value stored in ECU.
23. Stop/Start Reset
Set up the automatic start-stop function in ECU.
24. Coolant Bleeding
Activate the electronic water pump.
25. Brake Reset
It is important in the maintenance of electronic braking system’s safety and efficiency.
The scan tool monitors certain camshaft position sensors signals to determine if all conditions are met to continue with the procedure for Engine running.
Actually LAUNCH X431 Creader Elite For Audi supports more than 31+ reset Function , it supports almost reset function to the car , How to find the more reset Function ??????
The Normal reset Function is in the main menu – “reset button” ,but the other reset function , you should be go to “Diagnostic For Audi” – “System Selection” – “Basic Setting”/”Long Code”/”Adaptation” , all the 3 button has reset function , they cover all reset function for Audi , very powerful function !!!
LAUNCH X431 Creader Elite For Audi Supports Guide Function :
( it still no active now , will update later )
The Guide Function is used to detect or add the function of the car, such as locking the door/windows, rolling to the top or matching the key, or comfort function and so on.
Simply put, it is convenient for maintenance, find the fault point step by step according to your intention, provide relevant data, and give you a maintenance idea .
The Following Function need use The Guide Function :
√Service Regeneration,Particle Filter(DPF)
√Adapt Injector Correction Value
√ Reset Engine Control Adaptation Values
√ Throttle Learning
√ Fill Coolant Circuit
√ Adapt Values,SCR system
√ Activating/Deactivating Cruise Control System
√ Basic Setting Of Transmission
√ Basic Setting of Sensors (-G85/-G200/-G201/-G251)
√ Basic Setting/Bleeding Brake System
√ Initial A/C Compressor Run-In
√ Adaptation Automatic Locking At 15 km/h
√ Distance Control System Calibration
√ Deactivate Or Activate Airbags And Belt Tensioners
√ Adaptation Menu Key Multifunction Steering Wheel
√ Adapting Service Intervals
√ Service Interval Display ,Resetting
√ Transport Mode, Switching Off/On
√ Level Control System Basic Settings
√ Brake Pad Change
√ Headlight Beam Adjustment
√ Battery Adaptation
√ Rear View Camera System Calibration
√ Driver Assistance Systems Front Sensor System Calibration etc.

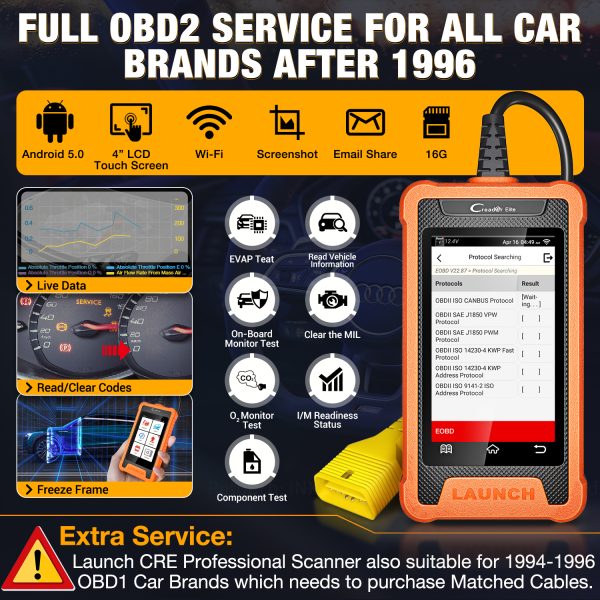

LAUNCH X431 Creader Elite For Audi Supports Full 10 OBD2 Function :
This scanner supports all 10 test modes for OBD-II cars which are great for daily repair work. The table below describes the purpose of each mode of operation:
1. Reading Codes: Show the detailed description of the Diagnostic Trouble Code (DTCs)
2. Erasing Codes & Reset: Turns off Check Engine Light (MIL), clears codes and resets monitors.
3. Data Stream: Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.
4. I/M Readiness Status: Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.
5. Read Live Data Stream: Show the information of continuous data stream from a vehicle in live graphic (waveform) display.
6. View Freeze Frame Data: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.
7.O2 Sensor Test: Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.
8.On-Board Monitor Test: Retrieves and displays test results for emission-related powertrain components and systems.
9.Read Vehicle Information: Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.
10.Component Test: Certain vehicle components can be actuated by commands sent from the scanner to test their operability.
The MALL function of LAUNCH X431 Creader Elite For AUDI
LAUNCH X431 Creader Elite supports for AUDI , for BENZ , for BMW , for GM , It also for other brands too , like for Toyota , for vw , for Ford etc , those brands need subscribe in MAll button , it takes USD49.95/Brands , you can choose the one you want to subscribe !!!
The Other Functions that LAUNCH X431 Creader Elite For Audi Supports :
1. Auto VIN Scan ( Smart Diagnosis ) :
Adopts Auto-VIN technology that will automatically recognize vehicle information which you get the vehicle’s make,model and year information more easily
2. Maintain Information ( powerful & useful Function ) :
This function has a how-to for some special functions, which is about examples of operating special functions for real vehicles to help you learn the operation of the special functions; It also has Online Coding Help that will show you the steps for this function； And has Channel Information, it will show you how to do basic settings to make the channel return to its original normal value. All of this maintenance information can assist you to better resolving the vehicle’s issue
3. DTC Library :
Allows you to retrieve the definition of the diagnostic trouble code from the abundant DTC database.
4. Display Real-Time Battery Voltage
If the charging system is not working properly, the battery will not get the proper charging voltage and it could go flat. This OBDII scanner can display the instantaneous voltage across the battery terminals in a graphical way. This helps you to get early warnings for possible battery and the charging system problems
5. Screenshot & Screen Recorder, Print Diagnostic Report
It is easy to you save the diagnostic data that you want , also the diagnostic report !
It also support print Diagnostic report , Scan the QR to Share first , then print .
LAUNCH X431 Creader Elite For Audi Update and Service :
Update via wifi :
Diagnostic Function is with Lifetime Free Update
Reset Function is with 1 Year software free update ( Lifetime free to use) .
15 days Free return & Refund ( for serveral countries )
5 Years Warranty
Lifetime Free Tech support
LAUNCH X431 Creader Elite For Audi supports Full OBD II Protocols:
1. SAE J1850 PWM (41.6 Kbaud)
2. SAE J1850 VPW (10.4 Kbaud)
3. ISO 9141-2 (5 baud init, 10.4 Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
9. ISO15765-4 CAN (29bit ID, 250 Kbaud)
LAUNCH X431 Creader Elite For Audi Parameter :
• Screen Size: 4 inch Touch Screen
• Resolution: 480*800 pixels
• CPU: 4-core 1.3GHz processor
• RAM: 1GB
• ROM: 16GB
• WiFi: 802.11b/g/n 2.4GHz
• USB: TYPE-C
• OBD II Input voltage range: 9~18V
• Power up via: DC 5V data cable or Diagnostic cable through connection to vehicle’s DLC
• Working Temperature: -10℃ to 45℃ (14℉ to 113 ℉)
• Storage Temperature: -20℃ to 70℃ (-4℉ to 158 ℉)

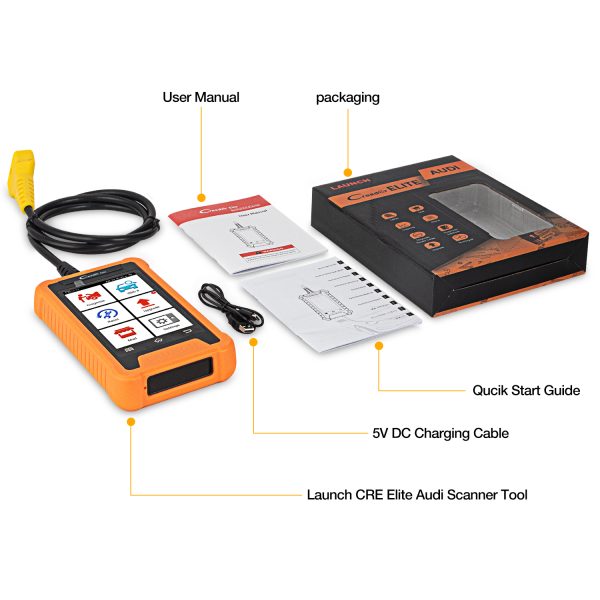

LAUNCH X431 Creader Elite For Audi Packing List:
1. LAUNCH Creader Elite Special Car Scanner
2. Data Cable
3. User Manual Multi-language
4. Quick Start Guide Multi-language
