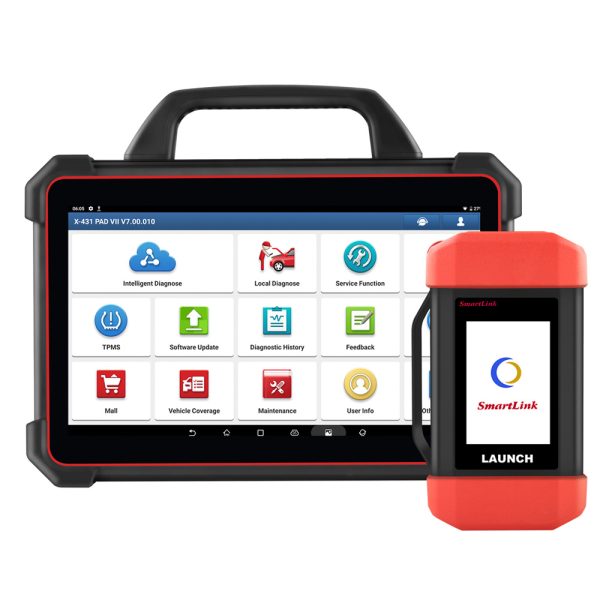

2024 Launch X431 PAD VII Elite PAD 7 with Smartlink C VCI Automotive Diagnostic Tool Support Online Coding and Programming

Description

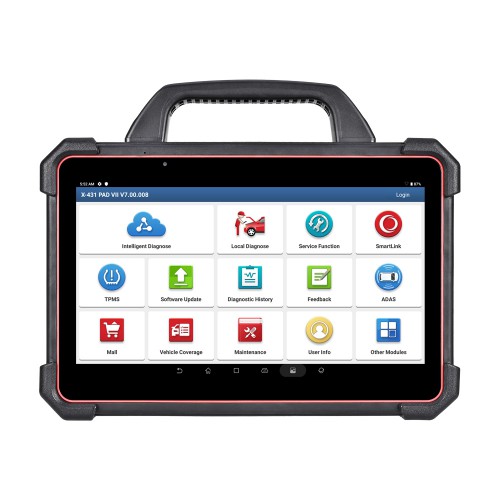

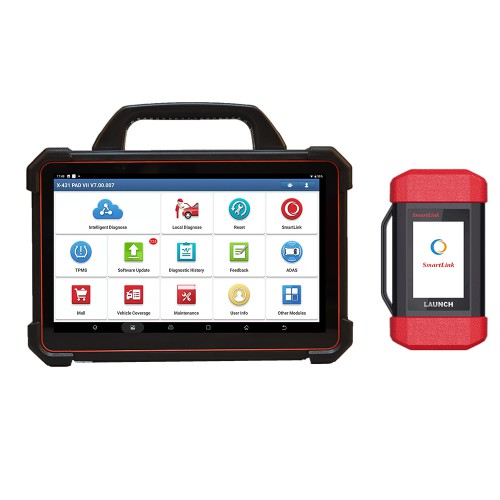

Original 2024 Launch X-431 PAD VII Elite PAD 7 with Smartlink C VCI Automotive Diagnostic Tool Support Online Coding and Programming

NEW-released ultimate scan tool LAUNCH X431 PAD VII ELITE is an unexpected high-end diagnostic tool from LAUNCH, comes with the ADAS calibration function, 60+ service functions, TPMS service, and 8 extended modules functions. New Smartlink C VCI powers technicians a new diagnostic level without the limitation of diagnostic functions, tools, and vehicle types.



2024 Launch X-431 PAD VII Elite PAD 7 Highlights:

1. With 2 Years Free Update Online
2. Global Version Without IP Limitation
3. Realtime Remote Diagnosis Function via WiFi
4. Support Commercial Vehicle and Passenger Car Diagnose, Support J2534, CAN FD, DoIP.
5. Full System Vehicle Coverage for U.S., Asian and European Markets Over 110 Brands, Which is Continually Updated
6. Multi-Language Supported: English, French, Spanish, German, Russian, Korean, Japanese, Portuguese, Italian, Polish, Dutch, Swedish, Chinese
7. Special Functions Supported: Injector, Reset Brake Bleed, Reset TPMS, Electronic Throttle Relearn, Reset DPF, Reset SAS, Reset Oil, Reset Brake, Reset BMS
8. Support Online Programming Till the Year 2020: BMW, Mercedes, VW, Audi, Seat, Skoda, Porsche, Nissan, Infiniti, Subaru. (Can’t perform in United States, Canada and Spain)

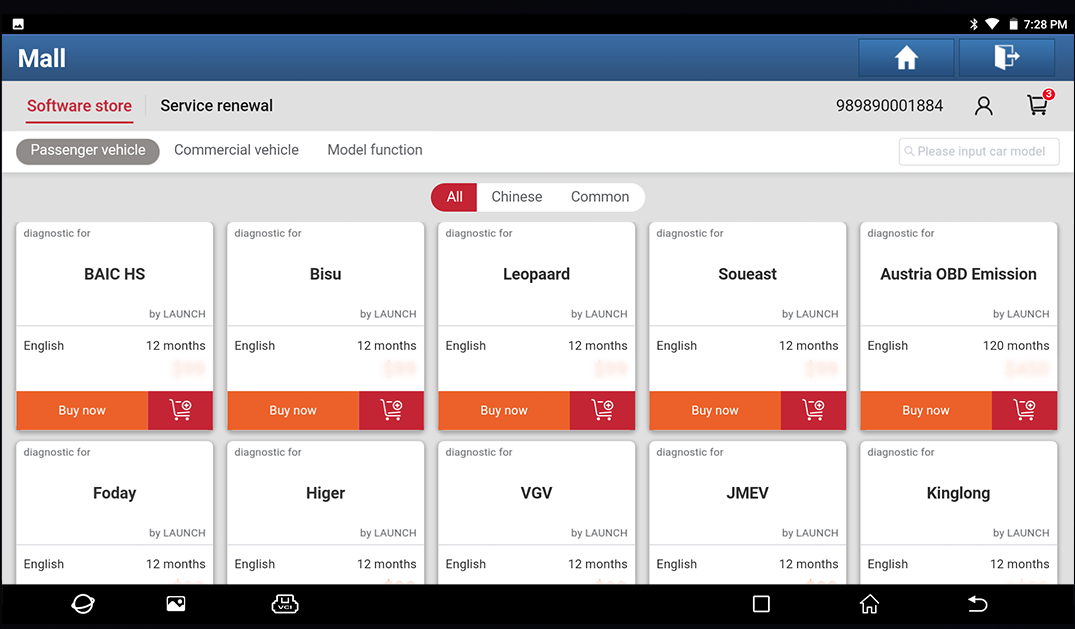

9. The New Module “MALL” is Now Available for All Users to Expand and Upgrade Their X-431 PAD VII Elite with More Diagnosis Software.
10. The X-431 PAD VII Elite supports ADAS calibration and eight extended modules:

•  X431 ADAS Moblie/ ADAS PRO, ADAS Activation Card
•  X431 XPROG-3 GIII Key Matching
•  X431 WIFI Printer
•  Launch VSP-600 Video Scope
•  X431 TSGUN or Launch X431 i-TPMS
•  LAUNCH X431 O2-2 Oscilloscope Scopebox and Launch X-431 Sensorbox S2-2.
•  BST360 battery tester.

Newly Added Functions:

• Online ECU Programming: Easily reprogram ECU modules on 30+ vehicle brands.
• 3-in-1 SmartLink C Device: Work as VCI to obtain vehicle data; Provide dual diagnostic modes; Act as a J2534 programming device.
• New Protocols: J2534/D-PDU/RP1210 & CAN 2.0/CAN FD/DoIP for faster diagnostics.
• Topology Mapping: Visually show you all system relationships and DTC in color topology.
• OBD PIN Detection: Detect the vehicle protocols and OBDII pin voltage status to help technicians judge the OBD2 interface.
• Diagnostic Plan: Provides a plan to guide you on how to repair based on the currently detected fault codes.
• User Information: A large amount of diagnostic data is well stored in this module, including Reports, Order, Live Data Stream, etc.

Hot Diagnostic Functions:

• 60+ Reset Functions: Cover various Reset/Relearn/Match/Calibration for 99% of cars.
• Wider Coverage: Serve commercial vehicles and 99% of passenger cars (up to 200 brands).
• Higher Updating Frequency: Timely one-click updating could fix all the bugs and bring newer models.
• VAG Guided Functions: Skip the Security Access Code & Channel Number to perform matching, calibration, and make basic settings.

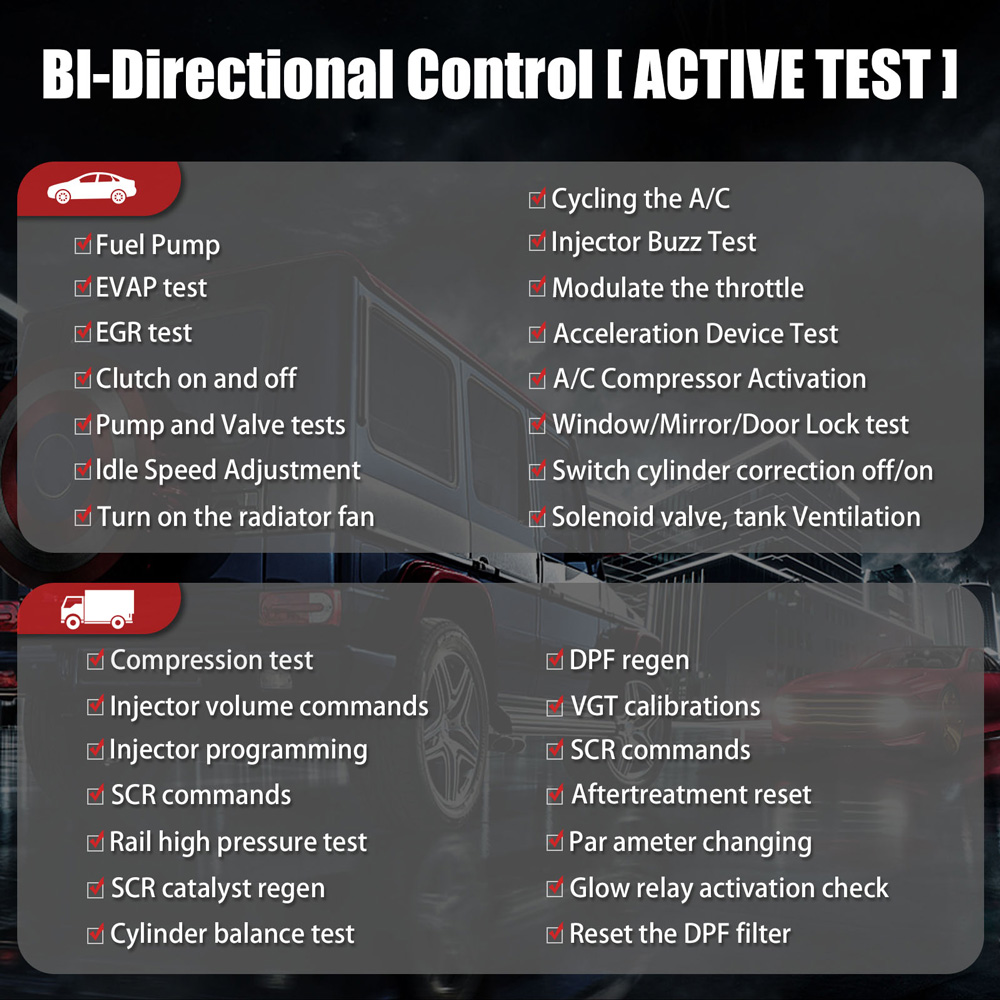

• Bi-directional Control: Quickly pinpoint the vehicle problems of windows, doors, sunroof, etc.

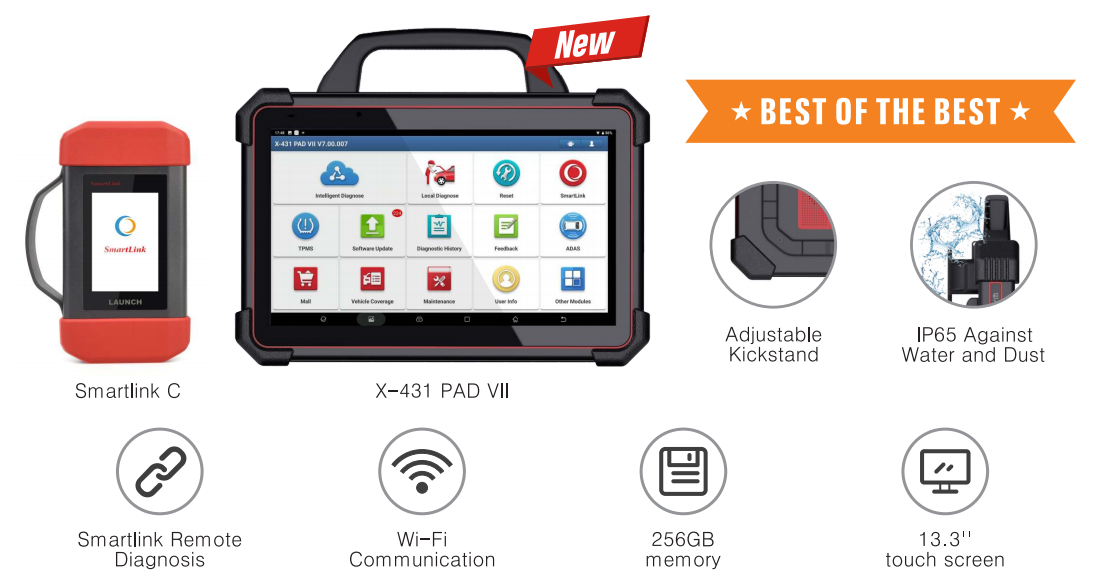

Super Hardware Configuration:

• [5G WiFi Communication] automatically connects within 20 meters, far better than traditional BT connection in transmission rate, diagnostic distance, and anti-interference.
• [Universal Physical Interfaces] include USB Type C, USB Type A, Micro-SD, Micro-SIM slot (LTE version), etc.
• [Patented Dual Diagnostic Modes] work on both local diagnostics & remote diagnostics.
• Core Processor + Android 9.0 OS] enhance the diagnostic speed of the multi-task process.
• [8+256GB Memory] ensures the smooth multi-task operation and keeps all the customer information, diagnostic data & files, and repair recordings.
• [13.3′ Touchscreen with 1920*1080] gives you a smoother view experience.
• [IP65 + Corner Protectors] more waterproof and more resistant to falls

Notes:
1. After 2 Years, Software Subscription click here
2. Can Not Support Online Programming In Spain, Canada, Portugal, Other Countries Won’t Have This Problem
3. PAD VII Elite Can Support ADAS Calibration, But Clients Need To Buy the ADAS Devices To Make It. Without ADAS Devices, Can Not Do ADAS Calibration by PAD VII Elite Only

ALL-IN-ONE Comprehensive Professional Diagnostic Tool

1. Online Programming for 30+ car brands: all data are saved in a cloud-based server to minimize data loss; operate through a guided menu for stress-free programming.
2. SmartLink C VCI Box: SAE J2534-1 & -2 compliant pass thru reprogramming interface device; get cost-effective access to OE programming downloads from vehicle manufacturers (need a subscription of their software), replace outdated ECU software/firmware, and program new ECUs.
3. Backup/Recover ECU Data: generate programming & coding backup data saved as a file supporting your recovery of car functions. (EX.CLUSIVE on the market)
4. Manual & Automatic Options: online servers send the values automatically for quick and precise procedure; or you can make options manually for more customized car builds.

Why is the LAUNCH X431 PAD VII Elite scan tool more powerful than another diagnostic tool?

– Online programming tool X431PAD VII Elite does not require an expensive online account, just connect to WIFI, saving maintenance costs.
– The smart box adopts dual WIFI communication to improve programming speed, thereby reducing the possibility of programming errors
– When using the J2534 tool, in addition to the connector, it is also necessary to consider issues such as adapting the computer, installation costs, and complete functions, which are not cost-effective.

Reliable ECU Data Backup, Faster Recovery & Less Downtime

-When customizing your vehicle, there is always a question: will it be able to revert the changes in case of human error, system failure, or data loss that bricks the vehicle computer? This is where the “Backup/Recovery ECU Data” function can prove to be very useful.

Unlike traditional car scanner backup methods that can be labor-intensive and inconsistent, LAUNCH X431 PADVII provides a simple mechanism to back up all your ECU programming & coding data.
LAUNCH X431 PAD VII Elite allows you to make a copy of your current Coding, Adaptations, and other info (such as Advanced ID and Live Data) of a selected control module, and save them as a file into your scan tool as a backup.
To restore coding or programming values, just select the backup file you need and you’ll effortlessly get reverted back to the old settings/coding in a control module.
Unlike any scan tools before, it practically anticipates your next move by guiding you through every step you need to find the solution patch while avoiding the steps you don’t, within a highly intuitive user interface that’s simple to learn and operate.

Advanced ECU Coding

-Serving as an upper-level function that not only creates the vehicle’s potential but also increases your profits. These PAD 7 Elite automatic functions save us work & time and allow us to concentrate on our driving experience.

Component Matching: Match the ECU modules after changing and replacement.
Flash Hidden Functions: Activate advanced functions or Disable Vehicle Functions: like Deactivating the Start/Stop Function; Beeping When Unlocking and Locking; Seatbelt Warning Sounds; Mirrors Automatically Folding and Unfolding; and more.
Online Coding: enables you to access the online data from the OEM server to do high-level repairs, such as online coding for BMW, VW, Skoda, Infiniti, Nissan, Hyundai, etc.

Superior Hardware Makes Diagnosis Faster Than Ever

X-431 PAD VII Elite is an unexpected high-end diagnostic, that comes with a 13.3-inch large touch screen, 32 service functions and Smartlink remote diagnosis. Equipped with the 2.0GHz Octa-core optimized chipset, Android 9.0 operating system, 8G memory and 256G large storage memories, X- 431 PAD VII Elite makes your intelligent diagnosis faster than ever.  The precision-machined outer shell is designed to work against workshop hazards such as water and dust damage and in compliance with IP65.

The X-431 PAD VII Elite uses a high-capacity (about 19,000 mAh) and high-power battery to ensure a longer battery life but a shorter charging time. Moreover, X-431 PAD VII improves the connection between scanner and VCI into “Dual WiFi’ connectivity, which allows the VCI to maintain faster and more stable connection during diagnostics.

LAUNCH X431 PAD VII Elite PAD7 Features

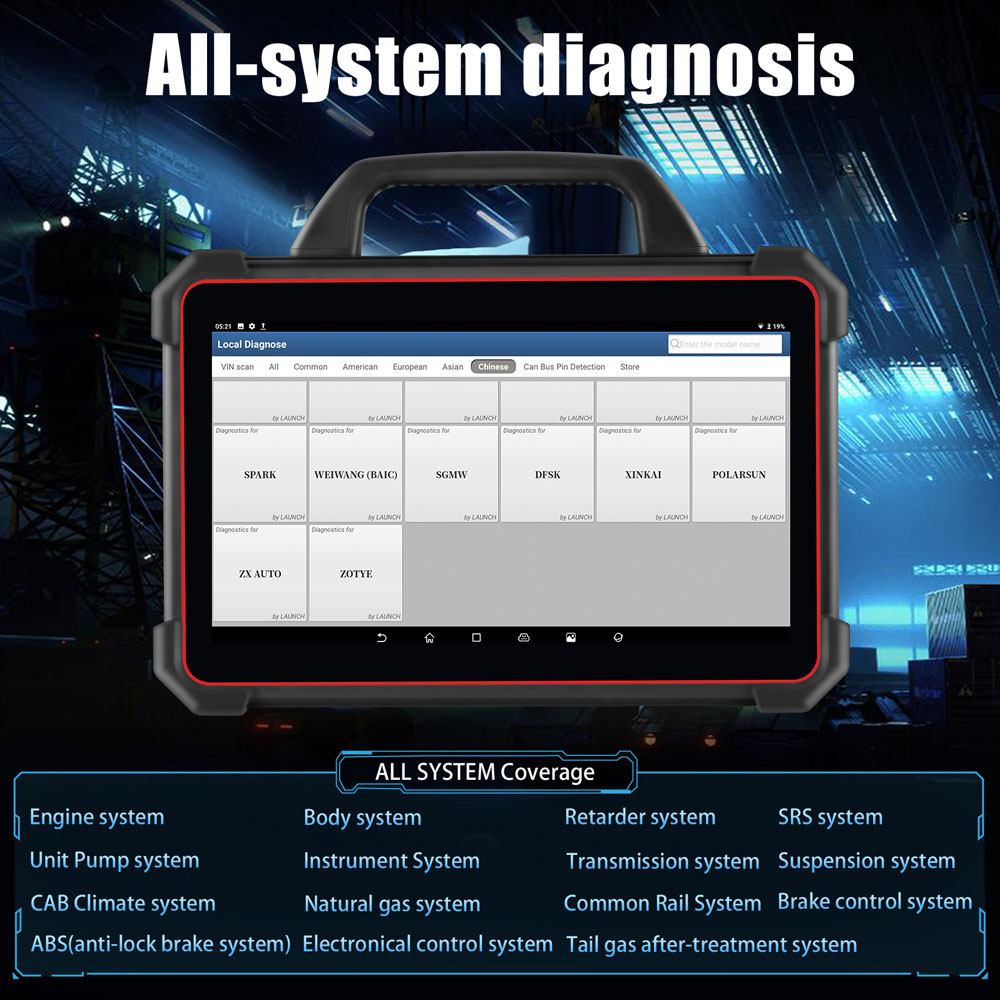

1. Full system vehicle coverage for U.S., Asian and European markets over 110 brands, which is continually updated
2. Upgrade and expand the X-431 PAD VII Elite with more software and service via the new module ‘MALL’ as demanded
3. Real-time voltage display helps technician to monitor the voltage condition of vehicle during the diagnosis
4. Topology mapping gives a visual checking on DTCs and all systems communication status
5. Support automotive communication protocols CAN/CANFD/DoIP and automotive communication standards J2534/D-PDU/RP1210
6. Auto-detects the communications protocol of the vehicle and assist in checking automotive OBDII port pin is damaged or not
7. Intelligent diagnostic enables identify VIN automatically and access system quickly
8. Guided function for VW and AUDI
9. Optional ADAS calibration function increases more revenue
10. Advanced coding and programming function
11. An extended solution to support TPMS service
12. 2.4GHz & 5GHz dual-band communication ensures quick and stable connection
13. Empower technician to diagnose light, medium & heavy-duty vehicles with Smarlink C
14. The basic functions include read & clear DTC, remote diagnosis, Bi-directional control, live data graph, wireless software update etc.
15. Build-in repair information and training video modules help to track and fix issues fast

Vehicle Coverage: 99.99% Vehicle Coverage, the Maximum on the Market.

This X431 PAD VII Elite automotive scanner comes with different adapters, and supports new protocols of CAN/CANFD/DoIP, and new communication standards of J2534/D-PDU/RP1210, covering 99.99% of the vehicle models (including Heavy Duty Vehicle brands) made in the USA, Europe, Asia, to meet the needs of diagnosing almost every vehicle coming into your workshop:

Passenger Vehicles:

1. Australian:  AUST Holden, AUST Ford
2. Asian: Toyota/ Lexus, Honda/ Acura, Mazda, Subaru, Nissan/ Infiniti, Mitsubishi, Hyundai, Isuzu, Daihatsu, KIA, Daewoo, Suzuki, Proton, Tata, Mahindra, Ssangyong, Perodua, Maruti
3. European: Audi, Mercedes/ Maybach, BMW/ MINI/ Rolls Royce, VW/ Bentley/ Bugatti, Opel/ Vauxhall, Peugeot, Citroen, Volvo, Sprinter, Renault/ Dacia, Fiat/ Romeo/ Abarth/ Lancia, Rover, Landrover, Saab, Seat, Skoda, Smart, Maserati, Ferrari, Arston Martin, Porsche, Jaguar
4. USA: USA Ford/ Lincoln, GM/ Buick/ Cadillac/ Chevrolet, Chrysler/ Dodge/ Jeep
5. Chinese: Changcheng (Great Wall), Geely, Qirui_TY(Cherry), Futian, Changan, Changhe, Haifei ….etc.
6. Special: Immobilizer/ Key, Injector, Reset Brake Bleed, Reset TPMS, Electronic Throttle Relearn, Reset DPF, Reset SAS, Reset Oil, Reset Brake, Reset BMS
7. Others: EOBD, Demo

Heavy Duty Vehicles (Optional):

Nissan (Diesel)
Mitsubishi (Diesel)
USA Ford Diesel, Kenworth
Astra, Benz Heavy Duty,  Bosch Diesel, China Heavy Duty, Cummins Heavy Duty, DAF, Delphi Diesel
Denso Diesel, FAW Liberation, Foton Auman, FUSO, Hino, Hyundai Heavy Duty, Isuzu Heavy Duty
Iveco Heavy Duty, JAC Heavy Duty, Mack , MAN , OBD Heavy Duty, Scania, Shangchai Diesel, Volvo Heavy Duty
WP Diesel, Airbus, Allison Transmission Box, Ashok Rejlander, Bendix ABS, Caterpillar Heavy Duty
Chai Heavy Vehicle, Chaoyang Diesel, Construction Machinery, CREDO Heavy Vechicle, Detroit Engine
Dongfeng Commercial Vehicle, Dongfeng Yufeng, Doosan Engine, Freightliner Heavy Duty Truck
Full Diesel Diagnosis Software, Haldex ABS Heavy Duty, HD_ABS System, HD_GoldenDragon, HD_International
HD_Kinglong, HD_Maxxforce, HD_Tata, HD_Western_Star, Heavy Truck Presentation Software
IRISBUS HD, IRIZAR HD, NEOPLAN HD, Peter HD, Renault HD, SETRA HD, Stannic Bavin, Sterling HD
Sunlong Bus, Sunwin Bus, UD Trucks 2F Nissan Diesel, WABCO ABS, Yang Chai Engine

60+ Special Maintenance Services:

• VAG Guided Functions: Skip the Security Access Code & Channel Number to perform matching, calibration, and basic settings for VW / Audi / Skoda / Seat.
• Component Matching: Rematch (control module unit) after the replacement for VW / Audi / Skoda / Seat / BMW / Chrysler / GM / Ford / Opel / Mazda / Fiat / Honda / Nissan / Hyundai / Kia / Subaru etc.
• Power Balance: Identify the less productive cylinder for Chrysler / GM / Ford.
• Programmable Module Installation (PMI): Ensure the correct software/calibration and configuration data are loaded onto the new module after replacement for Ford / Mazda.
• Personalization: Compatible with BMW / Porsche / Toyota / Subaru.
• Online Calibration: For some car systems’ calibration. Compatible with VW / Audi / Skoda / Seat.
• Online Account Login Service: Access to the login codes for coding, matching, and basic settings of all available systems.
• Online Parameterization … and many more are coming soon; expanding regularly.

Intelligent Diagnostics Provides One-stop Solutions & Spends Less Time:

1. Check the DTCs and all systems communication status visually by topology module mapping function.
2. Auto-detects the communications protocol of the vehicle uses, assist to check OBDII connector pin damaged or not.
3. Check the DTCs and all systems communication status visually by topology module mapping function.
4. Powerful diagnostic functions (intelligent diagnosis, remote diagnosis, read DTC, clear DTC, read data stream, actuation test), accurate diagnostic data, and abundant special functions.
5. Display I/M Readiness Status.
6. Read data stream: Support diverse data stream display modes and user-defined standard data stream.
7. Local diagnose: When the intelligent diagnosis is not available in an environment without network, choose traditional diagnosis. Select the vehicle make and model manually to perform the vehicle detection.

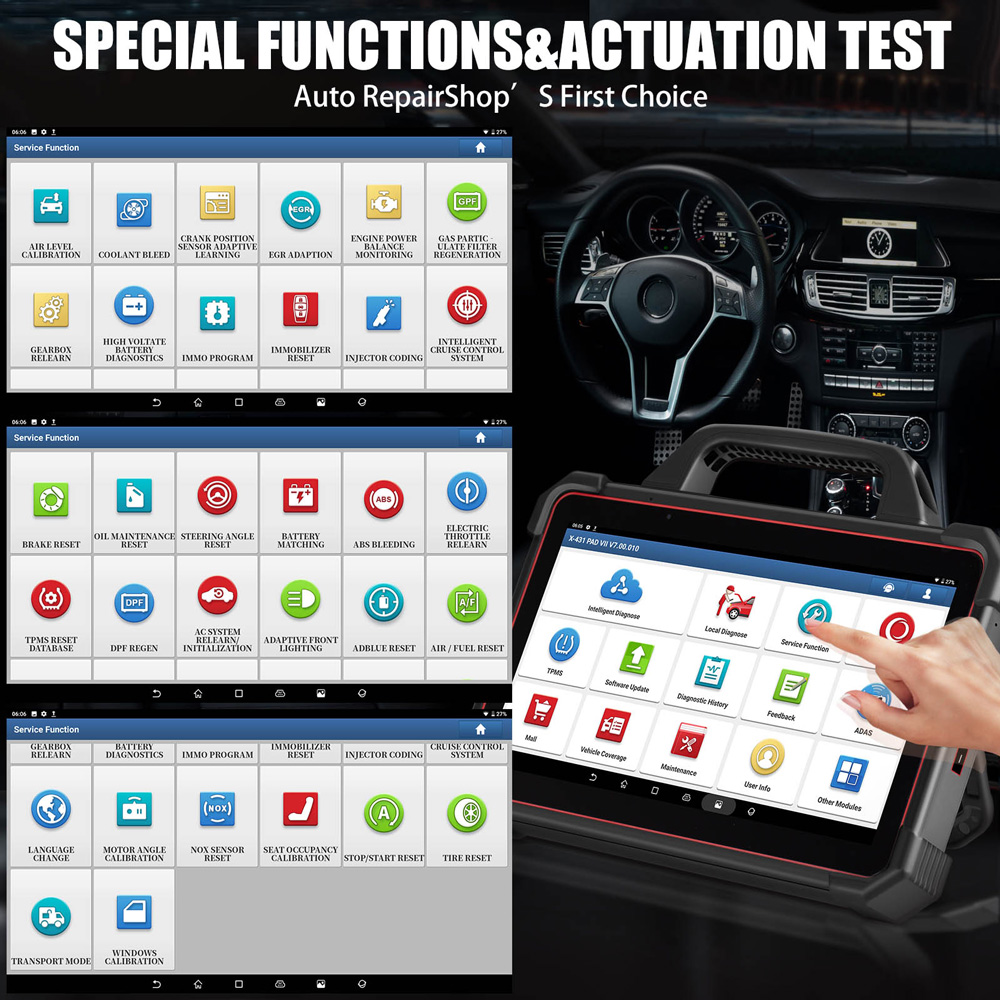

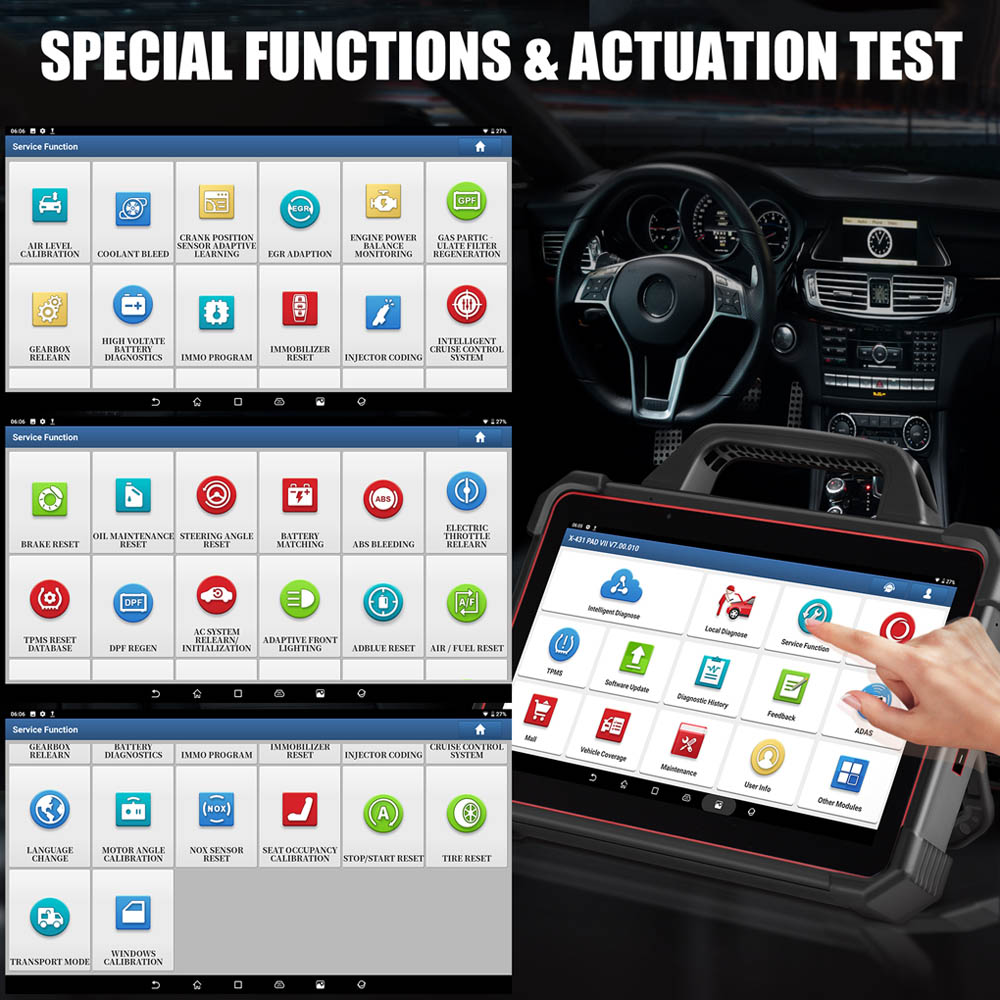

Powerful Special Functions:

Component Replacement, Cylinder Compression Test, Injector Cut Out Test, DPF Regeneration, Communicates with ABS & Transmissions from Bendix, Wabco and Allison, Tech to Tech remote communication function

The powerful Smartlink C VCI powers the diagnostic to a new level. Users are available to perform remote diagnosis without being on-site and
the limitation of diagnostic functions, tools and vehicle types.
It is able to assist technician to identify the OBDII port pin automatically and display the real-time voltage for voltage condition
monitoring during live diagnostics.

35+ Reset & Relearn Services:

Oil Reset, Injector Coding, Brake Reset, SAS Reset, BMS Service, ABS Bleeding, Throttle Matching, TPMS Reset, DPF Reg, Gear Learning, AFS Reset, EGR Adaption, Gearbox, Sunroof, SUS Reset, Windows Calibration, Seats Calibration, Language Change, A/F Reset, Coolant Bleed, Transport Mode, Adblue Reset, NOx Sensor Reset NOx, Stop/Start Reset, Headlamp Fitting, Seat Matching, Door & Window Initialization Study, Air Suspension Matching, Multimedia Video Reset, Cluster Reset, Immobilizer Service, Tire Change, and more.

**Cover the majority of makes and models worldwide up to 2018/2019/2020/2021; still growing.
**Function menus vary by your vehicle’s make and model year.

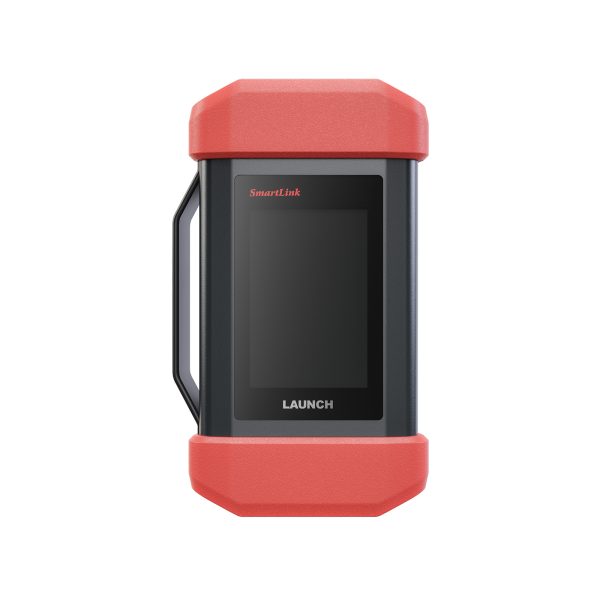

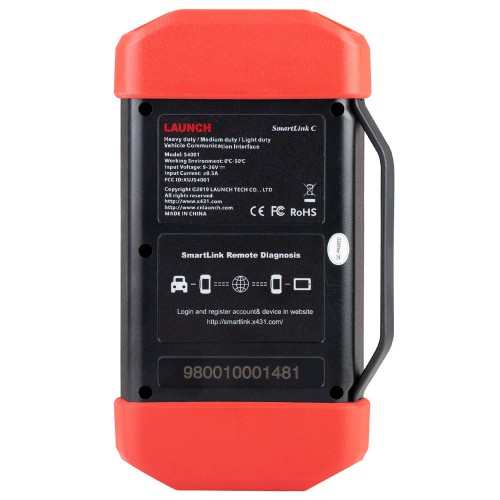

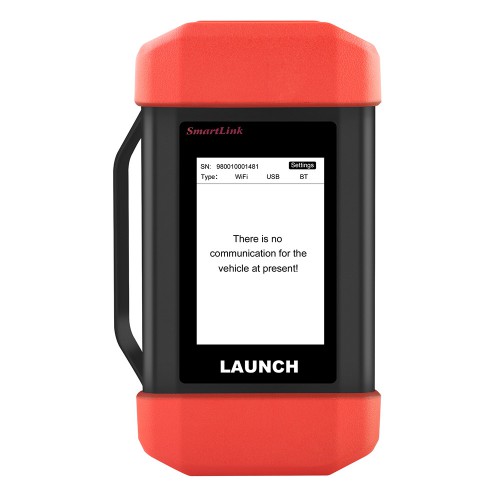

Smartlink C is a new generation intelligent diagnostic box with Linux system independently developed by Launch, which supports multiple communication modes (USB, BT, WIFI) and multiple diagnostic protocols. It can be used alone as a remote diagnosis box for SmartLink remote diagnosis, or as a pass-thru tool to connect with OEM software.

* Support D-PDU / J2534 / RP1210 diagnostic standard, and cover passenger cars and commercial vehicles at the same time
* Support the latest diagnosis protocol of CAN/DOIP / CAN FD
* Support 2.4G/5G dual band
* Support online upgrade

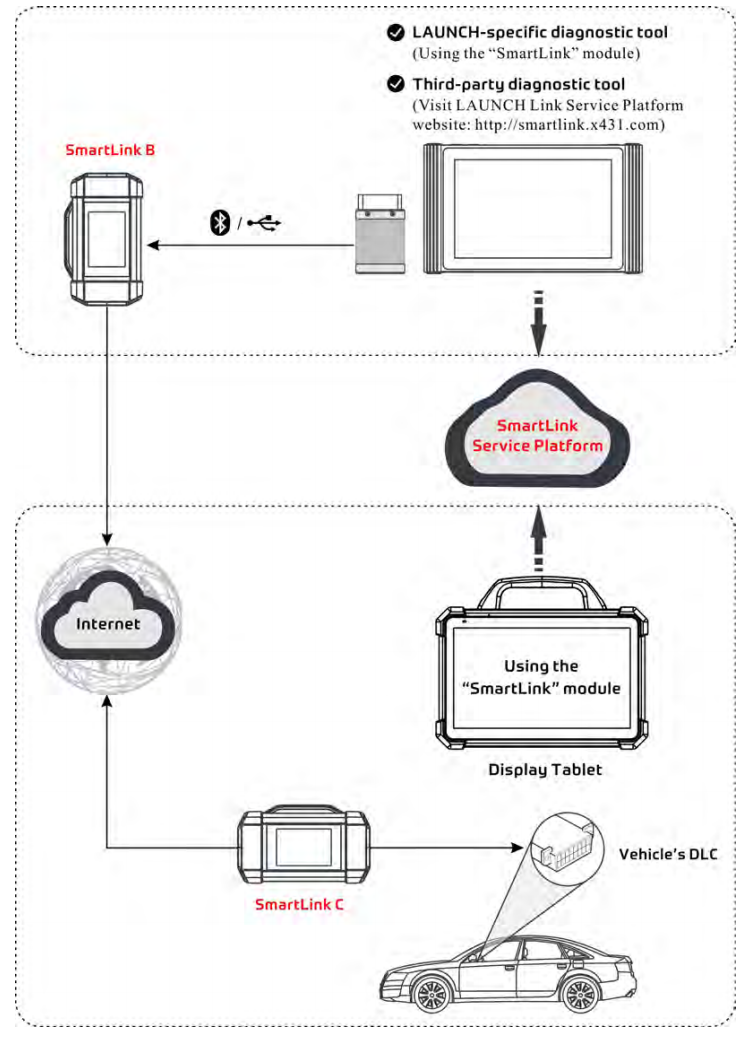

In the SmartLink ecology system, if a technician (SmartLink C) does not have time to puzzle through a touch vehicle problem, he can seek a trusted second opinion or additional expertise on various vehicle issues from remote master technicians or repair shops (SmartLink B). SmartLink B enables the shop owner to greatly increase customer’s retention and boost shop revenue by providing the professional technical assistance service.
It mainly consists of the following parts:

Topology Module Mapping

The Smart Topology Module Mapping in this diagnostic tool allows you to directly view the color-coded topology display for all communication structures between vehicle modules, and click to check the fault code, saving the hassle of toggling menus back and forth to find what you want.

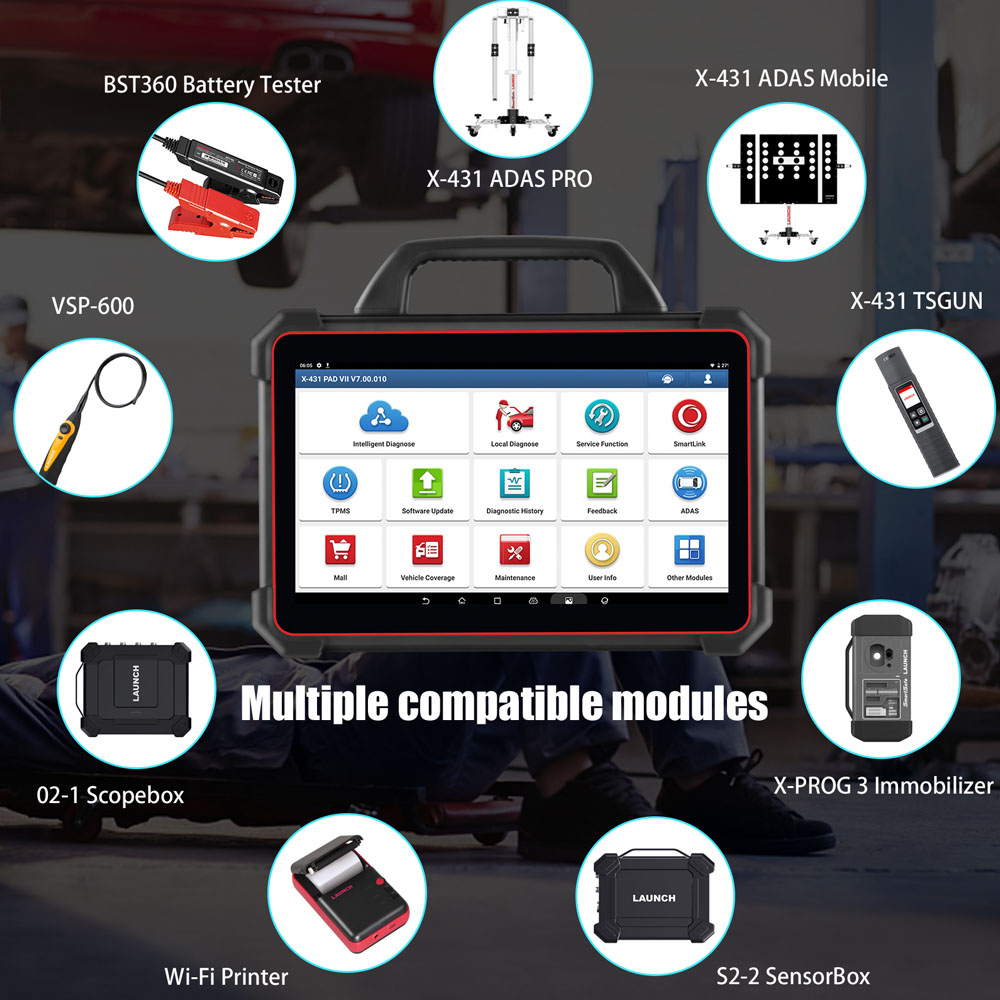

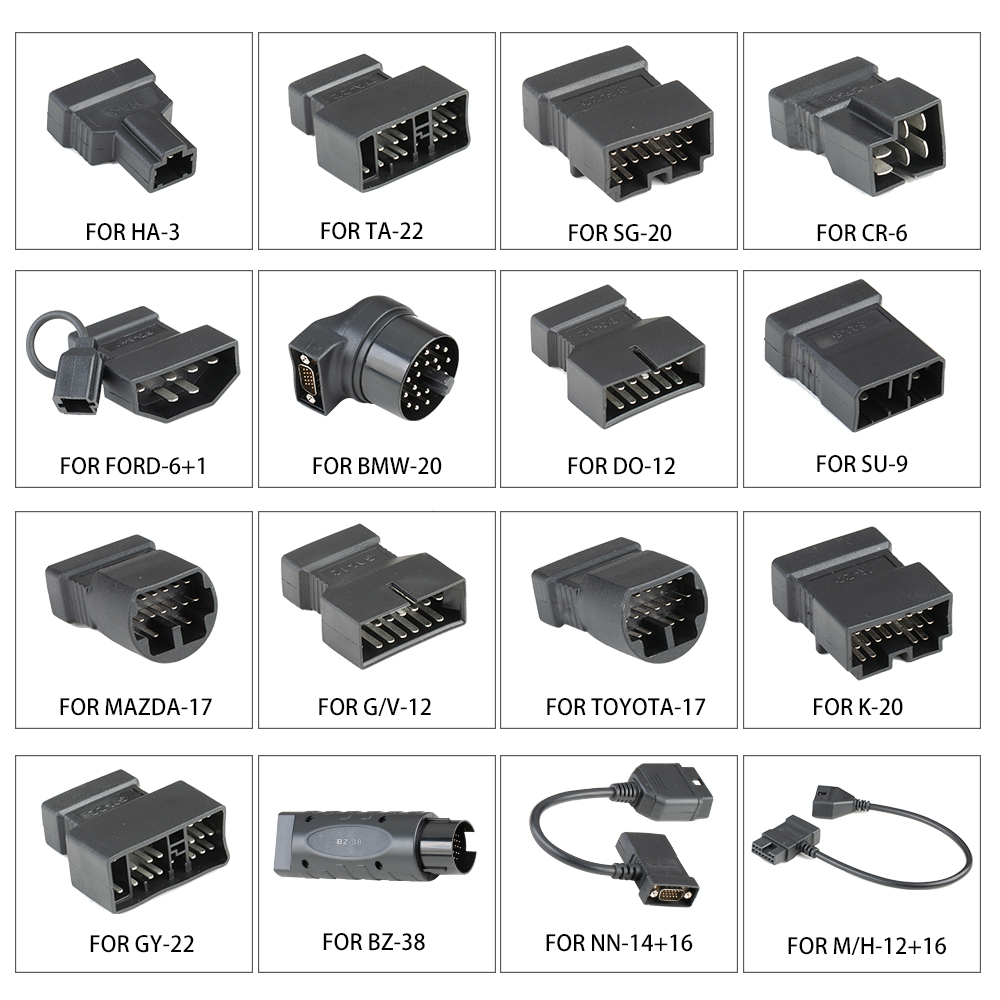

LAUNCH PAD VII Elite Expanded Vehicle Coverage With Extra Adapters

Meanwhile, the X-431 PAD VII Elite also supports 8 extended modules such as videoscope, oscilloscope, sensor box, TPMS tools, key immobilizer and battery tester. With these extended modules, technicians are available to solve high level faults with ease, to make thouse extended modules, you need to pay and buy the following extended adapters, please notice
1. X431 ADAS Moblie/ ADAS PRO: Calibrate a wide range of camera-based & radar-based driver assistance systems (please contact seller)

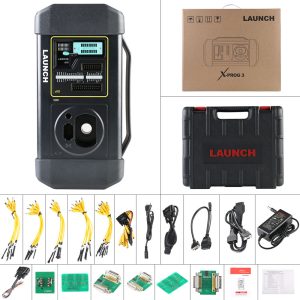

2. X431 PROG-3 Key Matching: IMMO For VAG Group Above 3.5, Vehicles that require cloning are not compatible with this accessory
3. X431 Printer (Print out diagnostic data/ reports.)

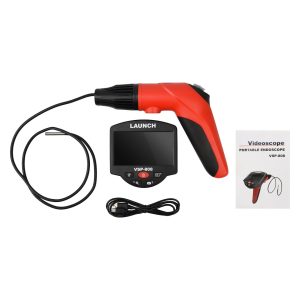

4. Launch VSP-600 Video Scope: Check unseen parts and give you a direct image of the engine, gears, compressors, headers and valves, and body components.

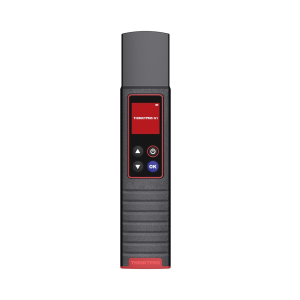

5. X431 TSGUN (Not only can you use it to activate the sensor’s ID, tire pressure, sensor frequency, tire temperature, and battery status; you can also program sensor data to a blank LAUNCH brand sensor in three ways: Auto, Manual, and Activation Copy; at the same time, you It can be used to write the newly programmed sensor ID to the vehicle ECU.)
6. Oscilloscope and sensor box please contact seller.
7. BST360 battery tester: For Battery Cranking system Test, Battery Charging system Test, Battery Health Test.

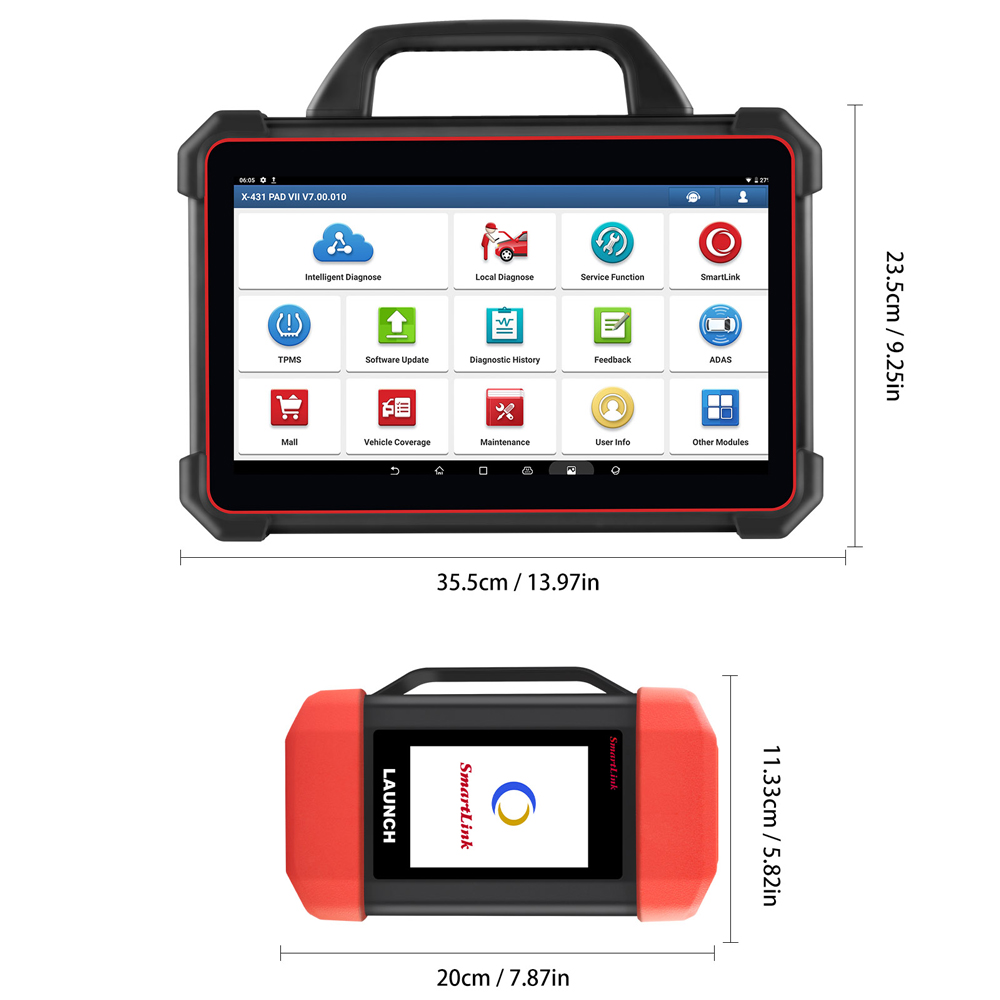

Specification:

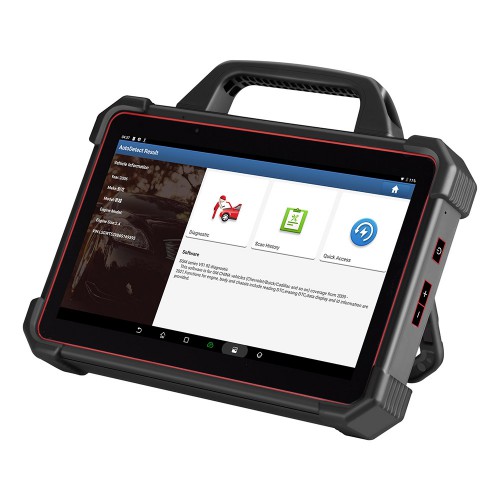

A. Display Tablet

Item	X-431 PAD VII Elite
Operation System	Andorid 9.0
CPU	Octa-core processor, 2GHz
Display	13.3 inch IPS capacitive touch screen with 1920 x 1080 resolution
Memory	8GB
Storage	256GB
Camera	13MP rear-facing camera (Auto focus), Front 8MP
WiFi	Dual Band 2.4 & 5GHz
Connectivity	Wi-Fi: 2.4G/5GHz dual frequency Universal serial BUS ports (1 x Type-C + 1 x Type-A)
HDMI	MicroHDMI out
Speaker	Two 1.5W speakers
Storage Temperature	-20℃ ~ 70℃
Working Temperature	0℃~50℃

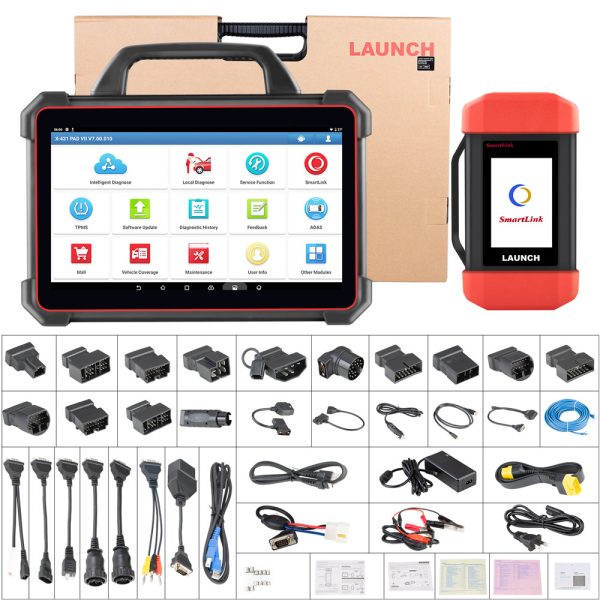

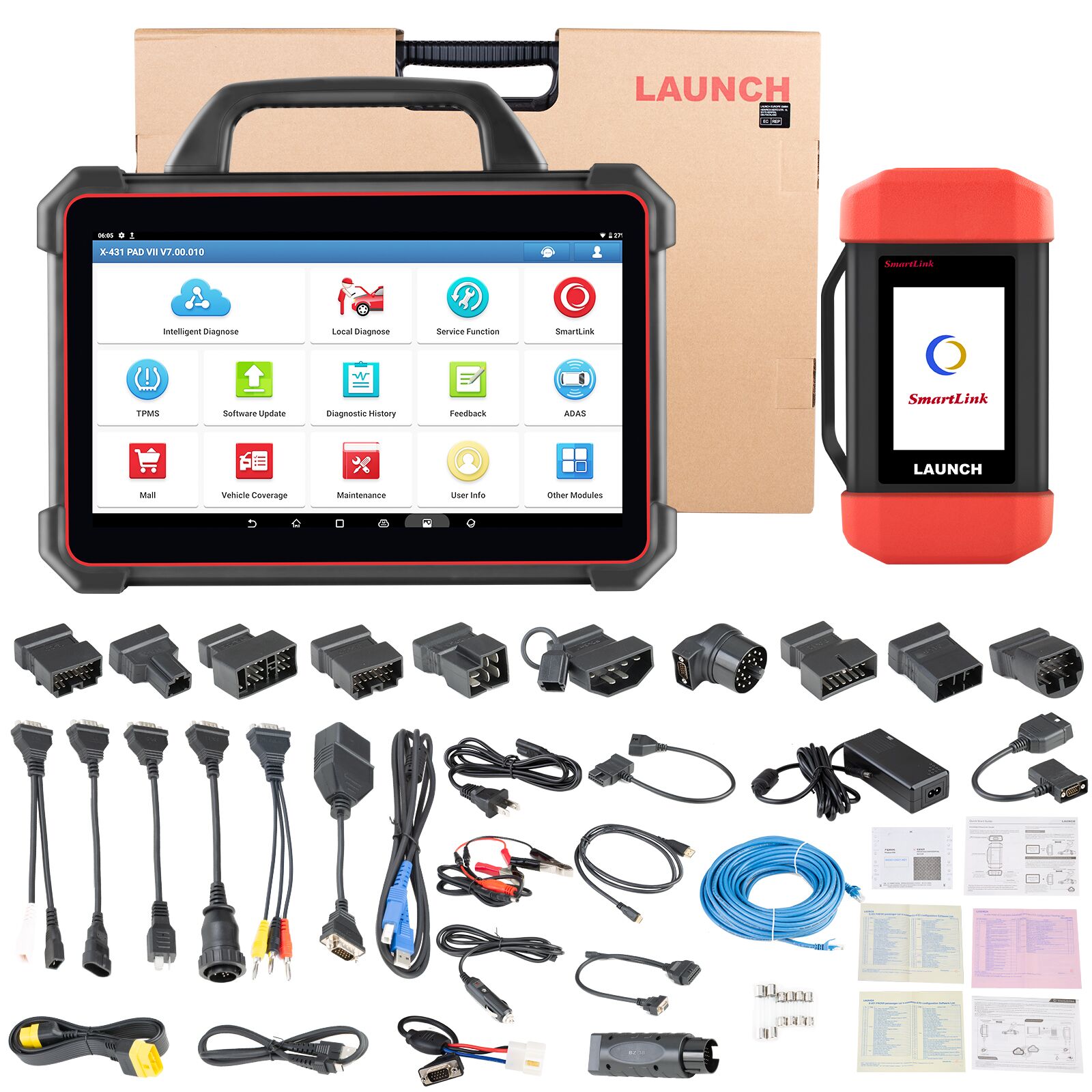

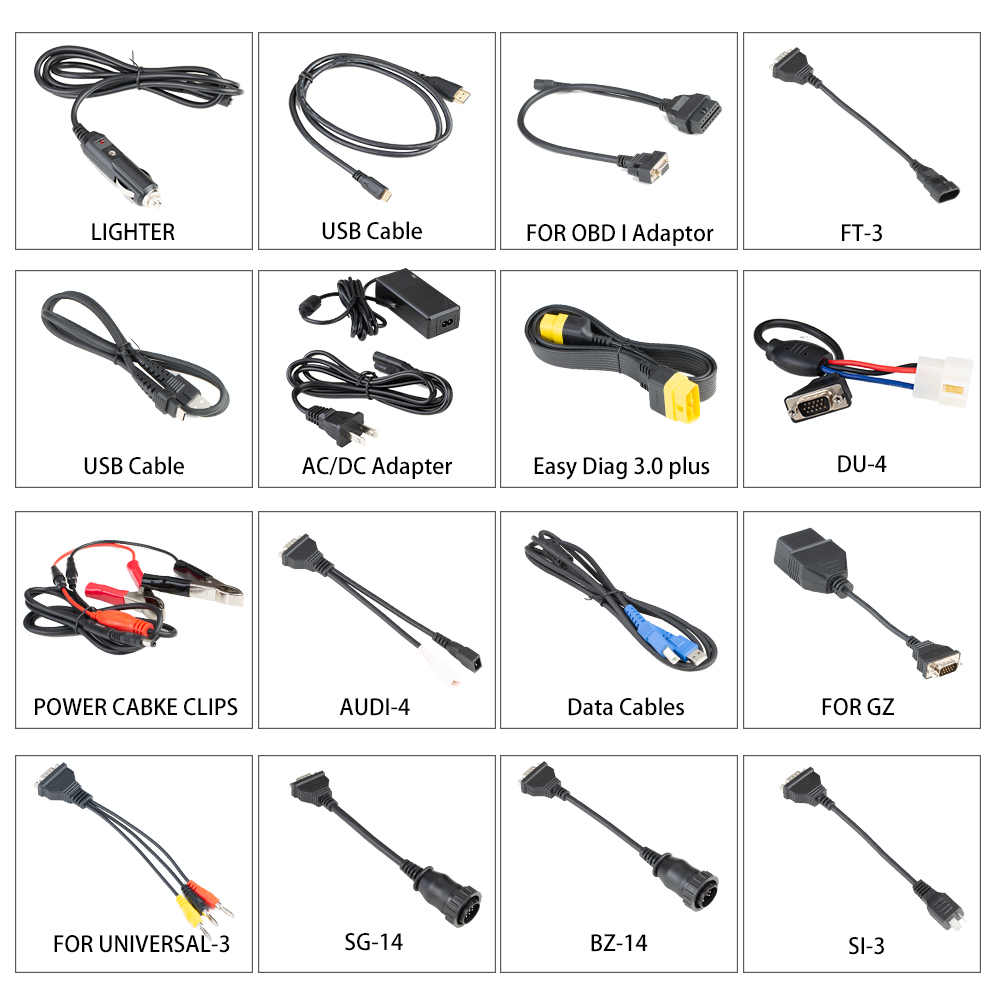

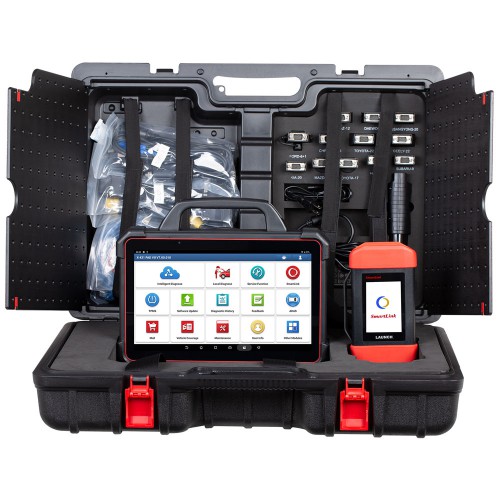

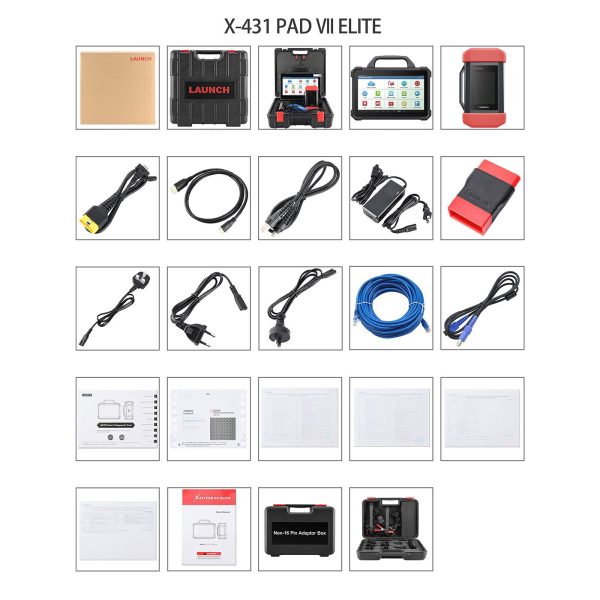

Package List:

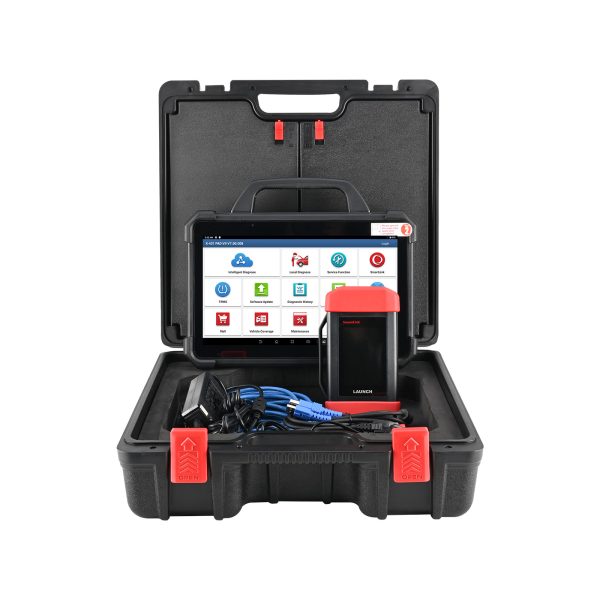

1x X-431 PAD VII Elite main unit
1x Smartlink C diagnostic connector
1x Micro USB cable
1x Cigarette lighter cable
1x 5V DC out power adaptor
1x Battery clamps cable
1x OBD II extension cable

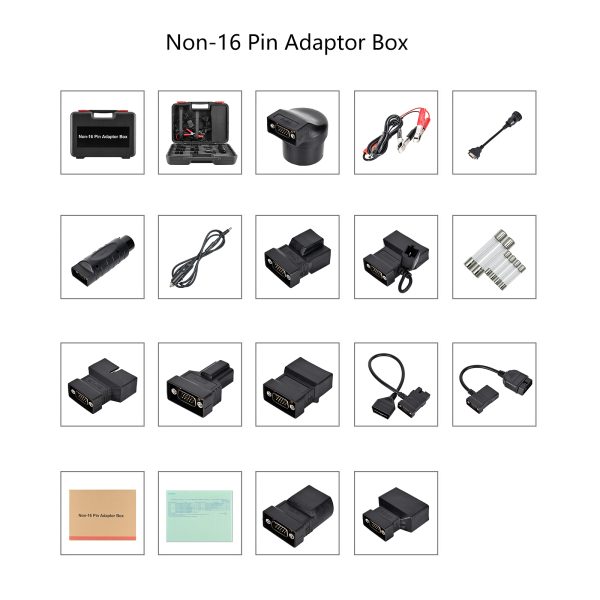

1x Non-16pin connector converting cable
1x Password envelope
1x Non-16pin connectors set
