LAUNCH X431 O2-2 Scopebox Oscilloscope analyze data Solving Complex Electrical Faults 4 Channels 100MHz USB DC Automotive Oscilloscopes Work with PRO3S+ V5.0/PAD V/ PAD VII

Free shipping by fast way 4-9 days


SKU: LXO2-2 Category:

Share this product


LAUNCH X431 O2-2 Oscilloscope Scopebox Analizador 4 Channel Digital Scopebox Tester USB Port Works with X431 PAD VII, PAD V, PAD III (4 Channels)

  • Featuring a new design and upgraded hardware, the LAUNCH O2-2 Scopebox is a versatile and easy to use add-on module that can detects high level faults on various electrical components, such as sensors, acturators and circuits. By integrating with the X-431 series scan tools via O2-2 application, it delivers accurate and conclusive diagnostic faults that enable the shop and technician to enlarge their scan tool’s functionality.Function:
    • Provides all kinds of testing applications on automotive parts (including circuits, sensors, actuators, ignition etc.).
    • Menu Includes the following options:
    • Measure: It provides 23 parametric measurement items.
    • Save: It allows you to save the current waveform as a reference waveform for future comparison.
    • Display: Sets the display mode of the waveform.
    • UserSetting: The following items are available: storage depth, factory reset, self-adjust (self-calibration), and save & recovery.
    • About: Displays the detailed information of the app.
    • Integrate with X-431 series scan tools (such as X431 PRO ELITE, X431 Throttle, X431 Pad II AE, X431 Torque, X431 Turbo, X431 Pro3S , X431 PAD V, X431 PAD VII, X431 IMMO Elite, X431 IMMO PLUS) through the O2-2 application for conclusive diagnostic results.

    Features of Launch O2-S2 Scopebox:

    • ECU troubleshooting and Diagnostics
    • Features the alility to record and palyback high-resolution waveform data for future analysis. One key enable function allows the suers to capture
    • a particular waveform which makes the process 70% more efficient as compared to other scopes
    • Access to 23 variants of automatic measurements that  are displayed on one screen for an easy switch
    • Ability to input names and characters directly by clicking on the virtual keyboard, this operation streamlines the process and contributes to 90% efficiency
    • Buffer memory up to 50M
    • Use the zoom in/out feature to review precise details
    • Customizable personal system settings that can be saved as configuration files for viewing
    • The Self-calibration function allows optimization of the oscillosope signal path for maximum measurement accuracy
    • Magnifies waveform math operations, such as affition, subtraction, multiplication and FFT function for high level waveform anlysis
    • Multiple automotive tests that include circuits, sensors, actuators, ignition tests and more
    • Multi language user interface
    • USB Sunc data transfer to external devices such as laptoop, tablet, etc..

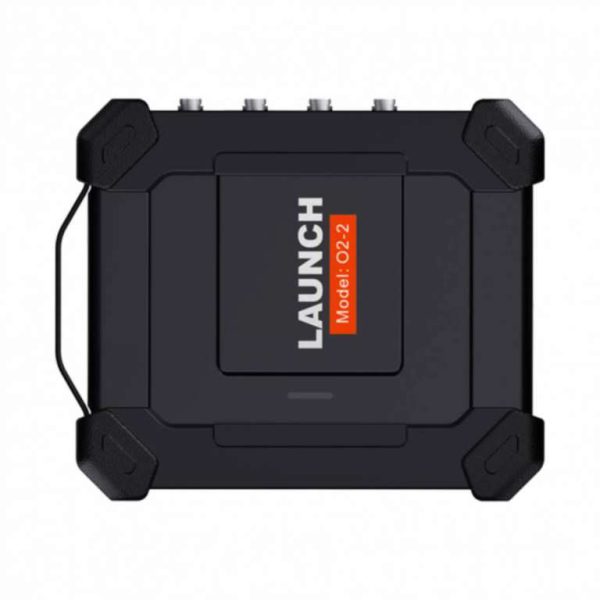

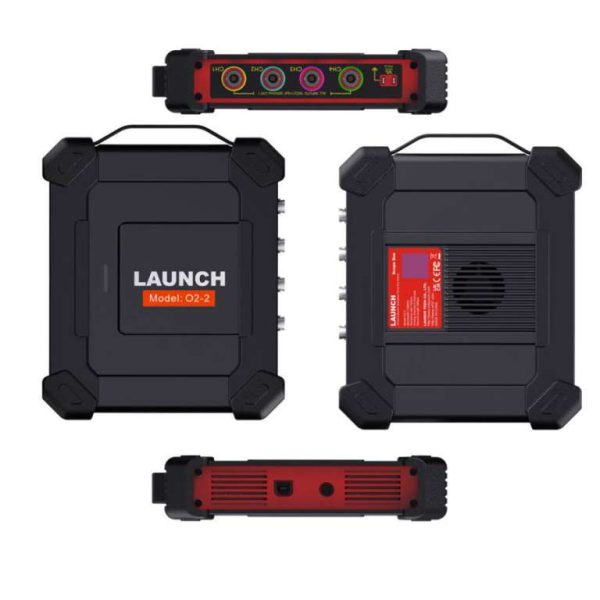

    LAUNCH X431 O2-2 Oscilloscope


    Channels 4
    Bandwidth 100MHz
    Rising Time 3.5ns (typical)
    Accuracy ±3%
    Input Impedance 1M ±1.5%
    Input Type Single-ended, BNC Connector
    Input Coupling DC, AC
    Overload Protection ±200V on single input
    Timebase Ranges 1ns~1ks (1 Channel)
    1ns~1ks (2 Channels)
    1ns~1ks (4 Channels)
    Vertical Resolution 8bits
    Buffer Memory 10M (for 4 Channels)
    Power Interface USB port, DC IN port
    Data Exchange Via USB
    Trigger Mode Normal, Auto and Single SEQ
    Advanced Triggers Edge, Pulse width

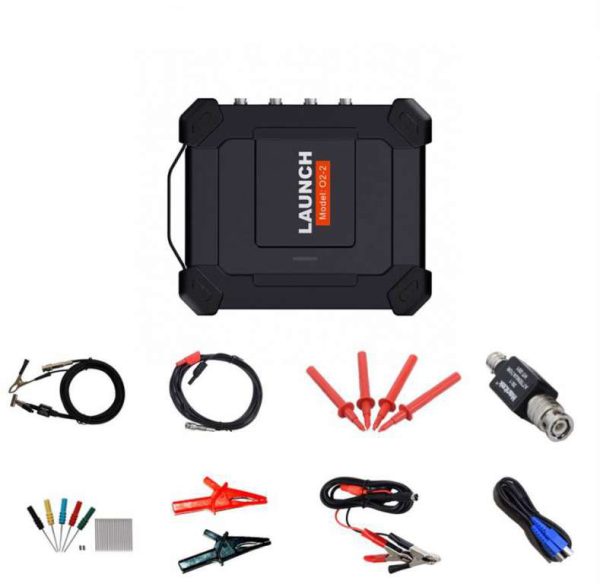

    LAUNCH X431 O2-2 Electrical analyzer oscilloscope


    20:1 attenuator
    BNC test leads: 4 mm
    Cable for alligator clips
    Alligator clips
    Secondary ignition starter
    Multimeter probes
    Rear probe pin assembly
    USB cable

    Detailed Comparison Between Launch O2-2 Scope Box and Launch O2-1 Scope Box

    Model O2-1 O2-2
    Channel 4 4
    Bandwith 100MHz 100MHz
    Rise Time ≤3.5ns(typical) ≤3.5ns
    Maximum sampling rate 1Gbps(for four channels) 1Gbps
    Input resistance 1MΩ±1.5% 1MΩ±1.5%
    Storage depth 50M 10M
    Number of sampling bits 8bit 8bit
    vertical accuracy 3% 3%
    Vertical gear 5mV~10V 5mV~10V
    Inverting Support Support
    Channel coupled DC, AC DC, AC
    Time base gear 5ns~1ks 1ns-1ks
    Time base accuracy 20ppm 20ppm
    Sampling mode Normal Normal
    CANBus decoding CAN, LIN CAN, LIN
    Trigger type Edge, Pulse width Edge, Pulse width
    Trigger mode Normal, Auto and Single SEQ Normal, Auto and Single SEQ
    Trigger coupling DC, Noise rejection DC, Noise rejection
    Math Double waveFFT Double waveFFT
    Display YT、Zoom、Roll YT、Zoom、Roll
    Roll mode 200ms/div~1000s/div 200ms/div~1000s/div
    Auto configuration Support Support
    Auto measurement 23 23
    Cursor Horizontal cursor, Vertical cursor Horizontal cursor, Vertical cursor
    Powered by USB port, DC IN port USB port, DC IN port
    Data transmission method USB USB
    Vehicle configuration options Circuits, sensor, actuators, ignition Circuits, sensor, actuators, ignition
    Operating temperature 0℃~50℃ 0℃~50℃
    Power supply range USB:5V/1A
    Compatibility Different tablet resolutions require different APPs One APP can be compatible with multiple tablet resolutions
    Multi-touch gestures No Supports 2-point touch, the waveform can be zoomed in or out vertically or horizontally
    Vehicle configuration No Each test project can support online help documentation (help documentation will be compiled according to needs later)
    Firmware upgrade Manual upgrade Support online upgrade
    Trigger Waveform observation cannot be expanded during normal trigger waiting. Can be used normally during normal trigger waiting.
    Demo function No Yes
    Split-screen No Yes
    Sampling rate Single channel 1G/s, more than 2 channels only 250M/s Single channel 1G/s, 2 channels 500M/s, multiple channels 250M/s
    Start time 2-3S about 16s
    Power consumption about 6W about 7.5W

    How to Connect the Cables?

    Different application scenarios require different connection methods (no matter which application scenario, the following connections are required):

    First, power the oscilloscope box through the double-clip power cable: Connect one end of the double-clip power cable to the power interface of the oscilloscope box, and the other end to the vehicle battery to draw power (red is connected to the positive pole, black is connected to the negative pole).

    Note: * PADVII series tablets support USB power supply.

    2. Connect the Type B terminal of the USB cable to the Type B interface of the oscilloscope, and connect the other end to the USB interface of the diagnostic device.

    Package Includes:

    Package Includes:

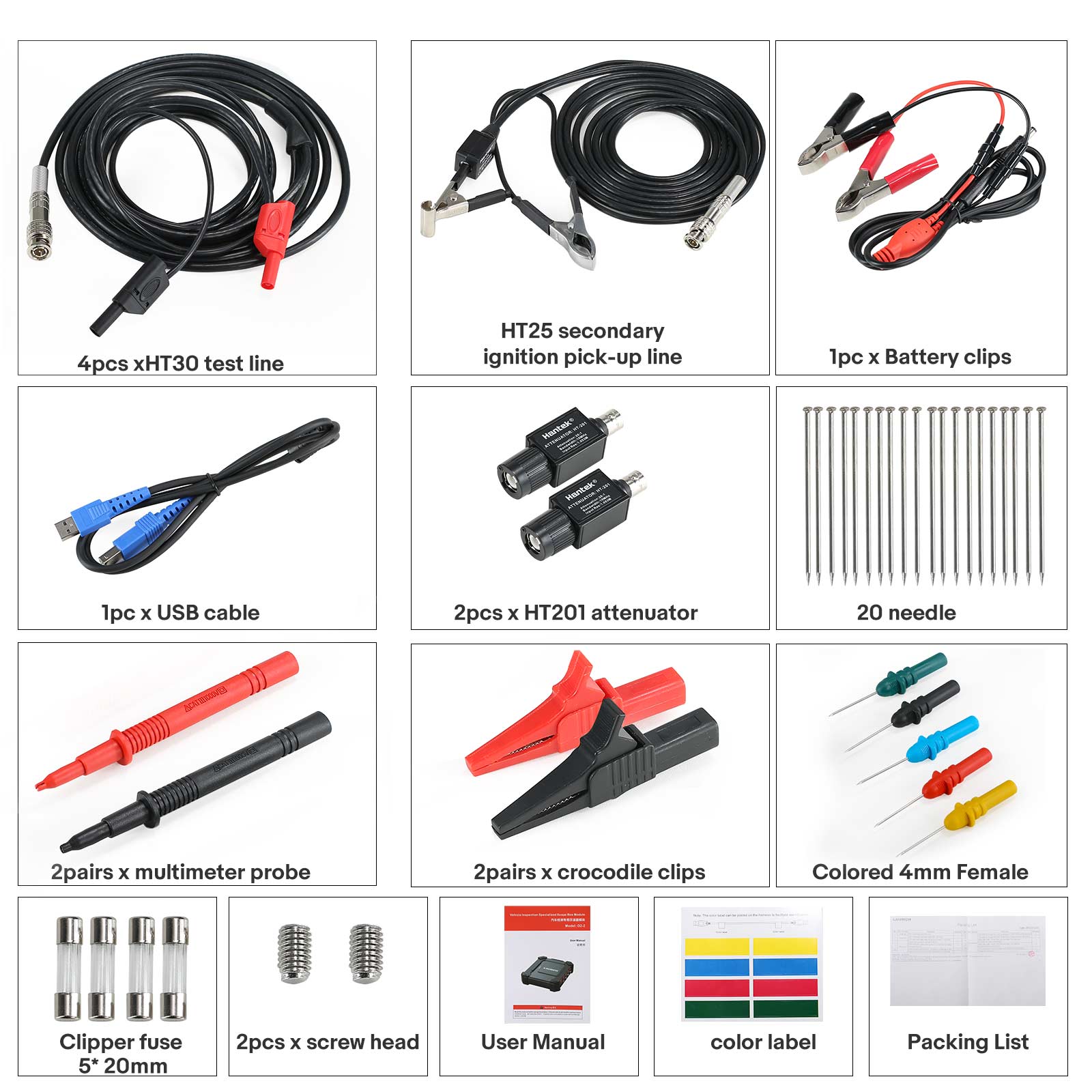

    1pc x Launch O2-2 main unit
    4pcs x HT 30 test lines
    1pc x HT25 secondary ignition pick-up line
    1pc x battery clip cable
    1pc x USB cable
    2pcs x HT201 attenuator
    20pcs x piercing needles
    2 pairs x multimeter probes
    2 pairs x crocodile clips
    5pcs x colored 4 female probes
    4pcs x clipper fuses(5*20mm)
    2pcs x screw head
    1pc x user manual
    1pc x color label
    1pc x packing list

    LAUNCH X431 O2-2 Electrical analyzer oscilloscope

Additional information

Weight 4 kg
