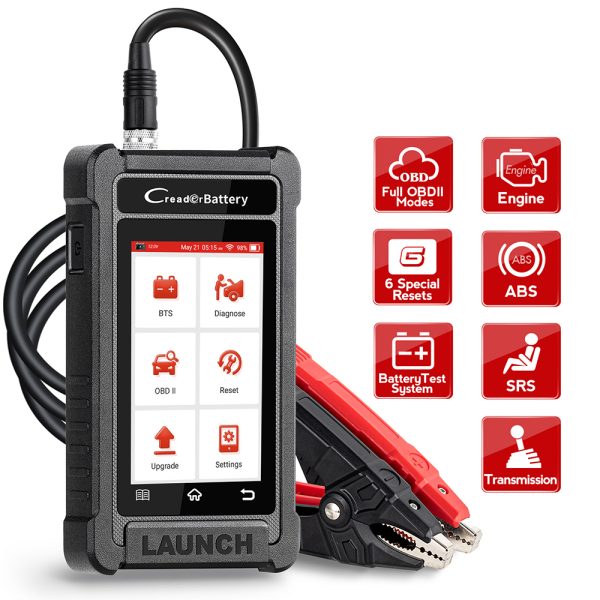

LAUNCH X431 CRB5001 OBD2 Scanner 12V Car Battery Tester Auto ENG ABS SRS AT Diagnostic Tools OIL BMS TPMS 6 Reset Free Update
LAUNCH CRB5001 Automotive Battery Tester, we can check the overall health of the battery, including the cranking test, and run a complete system charging test.
2022 Newest LAUNCH X431 CRB5001OBD2 Scanner 12V Car Battery Tester Auto ENG ABS SRS AT Diagnostic Tools OIL BMS TPMS 6 Reset Free Update pk BM550
Why Choose LAUNCH CRB5001
1.Battery Tester & OBD2 Scanner :2 in 1 comprehensive vehicle diagnostic tool supports battery test (including Battery Health Test, Start System Test ,and Charging Health Test) and OBD diagnostics (including read/clear DTCs ,and read data stream).
2. Support 4 Major System Diagnosis: Specially designed to diagnose electronic control systems,
read/clear codes,data stream,retrieves ECU information for Engine,ABS,SRS,Transmission.
3.Support 6 Common Service Function: Oil Lamp Reset,ABS Bleeding,Brake-pad Reset,BMS Reset,TPMS Reset and Electronic Throttle Position Matching.
4. Battery Standard : It supports various battery standards and specifications, including CCA（100-1700),BCI,CA,MCA,JIS,DIN,IEC,EN,SAE,and GB etc.
5. Support 10 modes of OBD II Test : With full OBD2 functions,including read&clear fault codes,read live data, O2 Sensor & On-Board monitor test, freeze frame data, view readiness status, Component Test,I/M readiness etc. It works with all 1996 and newer 12V gasoline and diesel that are OBD II compliant.
6. Widely Used Battery Load Tester: Test all car starter lead-acid batteries, including ordinary Lead-acid batteries, AGM batteries,and Gel batteries.
7.Advanced Features: The LAUNCH CRB5001 Adopt Auto-VIN technology which can make you get the vehicle’s make,model and year information more easily and diagnostic report will be automatically generated. It enables you to quickly access all the electronic control units of the vehicle and generate a detailed report about vehicle health.
8.User’s Friendly Features:
Feedback:If you have any vehicle issue that you can’t figure out,you can submit the diagnostic feedback to us for analysis and troubleshooting; You can share the diagnostic report with others via Email; Diagnostic history can record the previous diagnostic data and provides a quick access to the tested vehicles and users can choose to view the test report or resume from the last operation
9.Upgraded Hardware: Equipped with upgraded larger 4 inches Touch Screen and
Data Button/Home Button/BACK Button hot keys design can give better experience.
10. DTC Library: Designed with built-in DTC library allows you to retrieve the definition of the diagnostic trouble code from the abundant DTC database.
11.Lifetime Free Update Online : Allows you to update software via WIFI for free to keep updated with the latest software version.
12.Support 11 Languages : English,French,Spanish,German,Italian,Russian,Portuguese,Japanese,Korean,Traditional Chinese, Polish . All languages are free to use.
13.Worldwide Vehicle Coverage : It will be able to perform 4 major system diagnosis on 32 car brands.Cover most 1996 and newer American, European, Asian vehicles that supports OBD2/EOBD protocol.

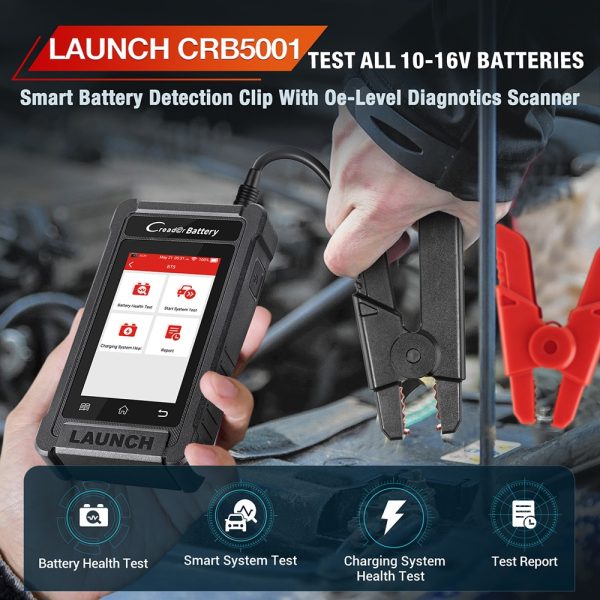

LAUNCH CRB5001 Car Battery Tester
Battery Health Test
Battery Health Test is mainly to analyze,calculate the health status of the battery and judge the aging degree of the battery
Start System Test
Start System Test is mainly to detect and analyze the starting motor, detect the actual starting current and starting voltage required by the starting motor
Charging Health Test
Charging Health Test is to check and analyze the charging system, including generators, rectifiers, rectifier diodes, etc.

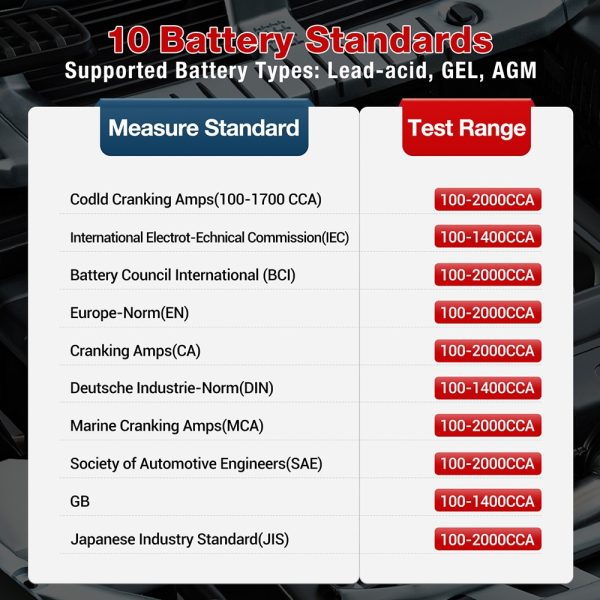

LAUNCH CRB5001 Support 10 Battery Standard
It supports various battery standards and specifications, including CCA（100-1700),BCI,CA,MCA,JIS,DIN,IEC,EN,SAE,and GB etc.
LAUNCH CRB5001 Support 4 System Diagnosis
1. For Engine:
The car scanner can read & clear DTCs, turn off the check engine light and view live data, allowing you to immediately pull the error log from the engine system.
2. For Anti-lock Braking System(ABS):
It is also designed to work with the anti-lock brake system (ABS) in the same way as basic code readers communicate with the engine.It will pull the diagnostic trouble code of causing the ABS lights to come on. Some of the common problems include blown sensor fuses, low brake fluids, and faulty sensors.Once the problem has been fixed then you can use this ABS diagnostic tool to reset the ABS lights.
3.For Airbag System (SRS)
Reading and clearing any fault code that exists in SRS (Airbag) system, and then turning off the airbag’s warning light.
4. For Transmission
This scan tool views live data, reads and clears codes in transmission systems, and turns off the warning light.
LAUNCH CRB5001 Support 6 Common Reset Function
The lightening of the car maintenance light indicates that the vehicle needs maintenance Reset the mileage or driving time to zero after the maintenance.
When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity. If the ABS computer, ABS pump, brake
master cylinder, brake cylinder, brake line, or brake fluid is replaced, the ABS bleeding function must be performed to bleed the ABS.
3.Throttle Adaption is to utilize the car decoder to initialize the throttle actuator so that the learning value of the ECU returns to the initial state. By doing these, the movement of the throttle (or idle motor) can be more accurately controlled, thus adjust the intake volume. Situations when throttle matching is needed:
a)After replacing the electronic control unit, the relevant characteristics of the throttle
operation have not been stored in the electronic control unit.
b)After the electric control unit is powered off, the memory of the electric control unit’s
memory is lost.
c)After replacing the throttle assembly, you need to match the throttle.
d)After replacing or disassembling the intake port, the controlling of the idle speed by the
coordination between the electronic control unit and the throttle body is affected.
)Although the characteristics of the idle throttle potentiometer have not changed, the
intake volume has changed and the idle control characteristics have changed at the
same throttle openings.
To deactivating and activate the brake control systems, assist with brake fluid control, open and close brake pads, and set brakes after disc or pad replacement
If the brake pad wears the brake pad sense line, the brake pad sense line sends a signal sense line to the on-board computer to replace the brake pad. After replacing the brake pad, you must reset the brake pad. Otherwise, the car alarms.
Enables you to perform resetting operation on the monitoring unit of battery,in which the original low battery fault information will be cleared.
When due to the tire pressure is too low,tire leaks,tire pressure monitoring device is replaced or installed,tire is replaced and tire pressure sensor is damaged,The tire pressure
resetting function must be performed to reset tire pressure and turn off the tire pressure
The LAUNCH Creader Battery 5001 Supports
Full OBD II Protocols:
1. SAE J1850 PWM (41.6 Kbaud)
2. SAE J1850 VPW (10.4 Kbaud)
3. ISO 9141-2 (5 baud init, 10.4 Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
9. ISO15765-4 CAN (29bit ID, 250 Kbaud)
LAUNCH CRB5001 Support Full OBD2 Function:
1.Reading Codes: Show the detailed description of the Diagnostic Trouble Code (DTCs)
2.Erasing Codes & Reset: Turns off Check Engine Light (MIL), clears codes and resets monitors.
3.Data Stream: Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.
4.I/M Readiness Status: Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.
5.Read Live Data Stream: Show the information of continuous data stream from a vehicle in live graphic display.(3 data stream display modes available: figure/value/4 data stream in one graph)
6.View Freeze Frame Data: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.
7.O2 Sensor Test: Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.
8.On-Board Monitor Test: Retrieves and displays test results for emission-related powertrain components and systems.
9.Read Vehicle Information: Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.
10.Component Test: Certain vehicle components can be actuated by commands sent from the scanner to test their operability.
LAUNCH CRB5001 Support 11 Languages :
English,French,Spanish,German,Italian,Russian,Portuguese,Japanese,Korean,Traditional Chinese, Polish . All languages are free to use.
The LAUNCH CRB5001 Adopt Auto-VIN technology which can make you get the vehicle’s make,model and year information more easily and diagnostic report will be automatically generated. It enables you to quickly access all the electronic control units of the vehicle and generate a detailed report about vehicle health.
Designed with built-in DTC library allows you to retrieve the definition of the diagnostic trouble code from the abundant DTC database.
Live Data Stream Analyse in Graph
The launch CRB5001 shows you live sensors data and provides data graphing for intuitive diagnostics and monitoring your vehicle performance, help customers to better analyze the abnormal parameter.
Share Diagnostic Report via Wi-Fi
Rather than taking the additional hassle, with this LAUNCH scanner, you would easily be able to share the diagnostics report to your clients or technicians via Wi-Fi. They would take a look at the full, clear, and accurate diagnostic report, and then understand what would need to be done. No more Googling unreliable fixes that would waste your energy.
One-Click Free Update LAUNCH CRB5001
Keep Diagnostic Software to latest , ect
• Screen Size:4″ Touch Screen
• Resolution:480*800 pixels
• Battery Capacity:3000mAh
• CPU: 4-core 1.3GHz processor
• RAM: 1GB
• ROM: 16GB
• WiFi: 802.11b/g/n 2.4GHz

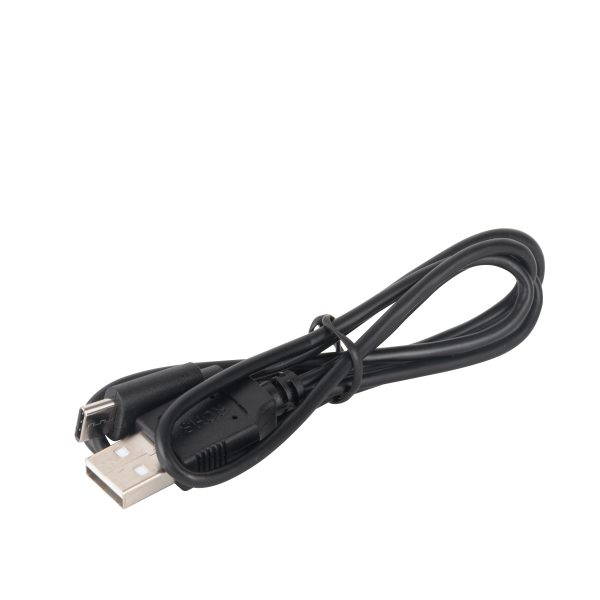

• USB: TYPE-C
• OBD II Input voltage range: 9~18V
• Power up via: DC 5V data cable or Diagnostic cable through connection to vehicle’s DLC
• Working Temperature: -10℃ to 45℃ (14℉ to 113 ℉)
• Storage Temperature: -20℃ to 70℃ (-4℉ to 158 ℉)
• Measurement Standard/Measurement Range:

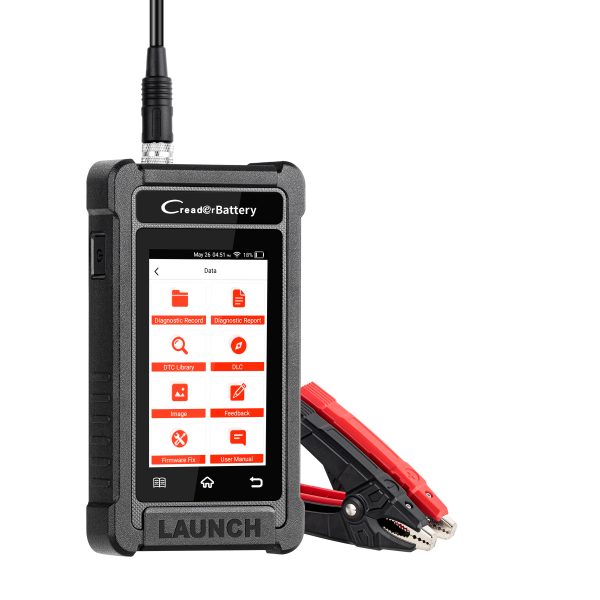

1.LAUNCH Creader Battery 5001 Tool

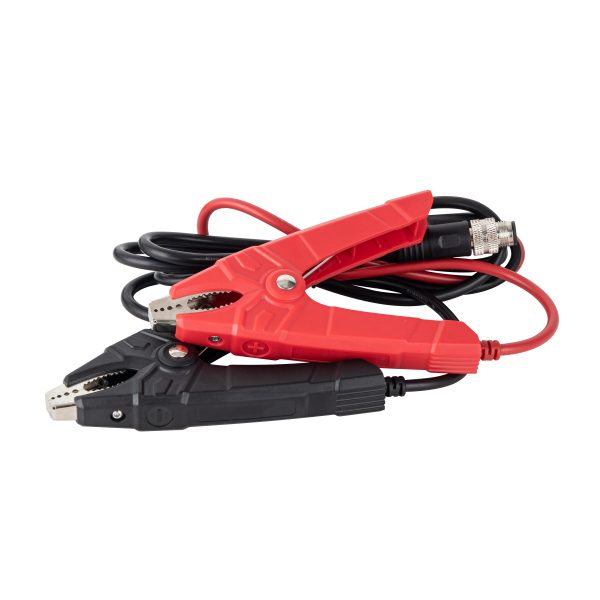

3.Battery Clamps Cable
