LAUNCH X431 O2-1 Scope Box Compatible With The X-431 PAD VII/ PAD V/ PAD III

Free shipping by fast way 4-9 days


Share this product

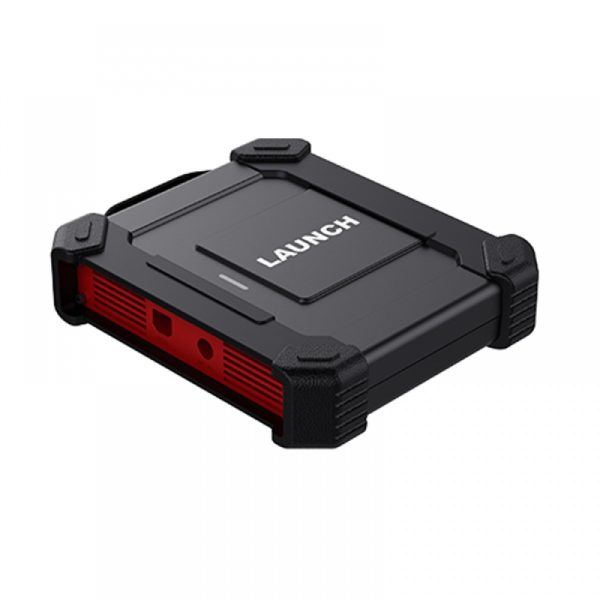

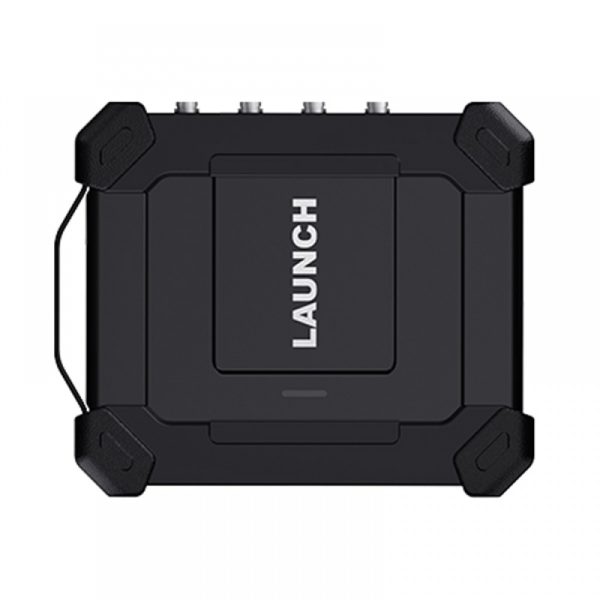

LAUNCH O2-1 Scope Box Compatible with the X-431 PAD VII, X-431 PAD V, X-431 PAD III V2.0

Featuring a new design and upgraded hardware, the LAUNCH O2-1 Scope Box is a versatile easy to use module that detects high level faults on various electrical components, such as sensors, actuators and circuits. By integrating with the X-431 series scan tools via O2-1 application, the O2-1 delivers accurate and conclusive diagnostic faults that enable the shop and technician to enlarge its scan tool’s functionality.

LAUNCH X431 O2-1 Scope Box Features

  • Features the ability to record and playback high-resolution waveform data for future analysis. One key enable function
  • allows the user to capture a particular waveform which makes the process 70% more dfficient as compared to other scopes.
  • Access to 23 variants of automatic measurements that are displayed on one screen for an easy switch.
  • Ability to input names and characters directly by clicking on the virtual keyboard, this operation streamlines the process and
  • contributes to 90% efficiency.
  • Buffer memory up to 50M.
  • Use the zoom in/out feature to review precise details
  • Customizable personal system settings that can be saved as configuration files for viewing
  • The self-calibration function allows optimization of the oscilloscope signal path for maximum measurement accuracy.
  • Magnifies waveform math operations, such as addition, subtraction, multiplication and FFT function for high level waveform analysis.
  • Multiple automotive tests that include circuits, sensors, actuators, ignition tests and more.
  • Multi language user interface.
  • USB Sync Data Transfer to external devices such as laptop, tablet, etc….Specification

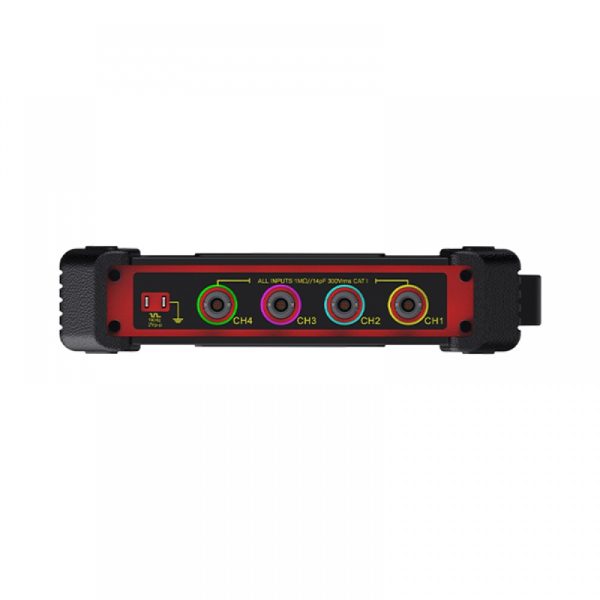

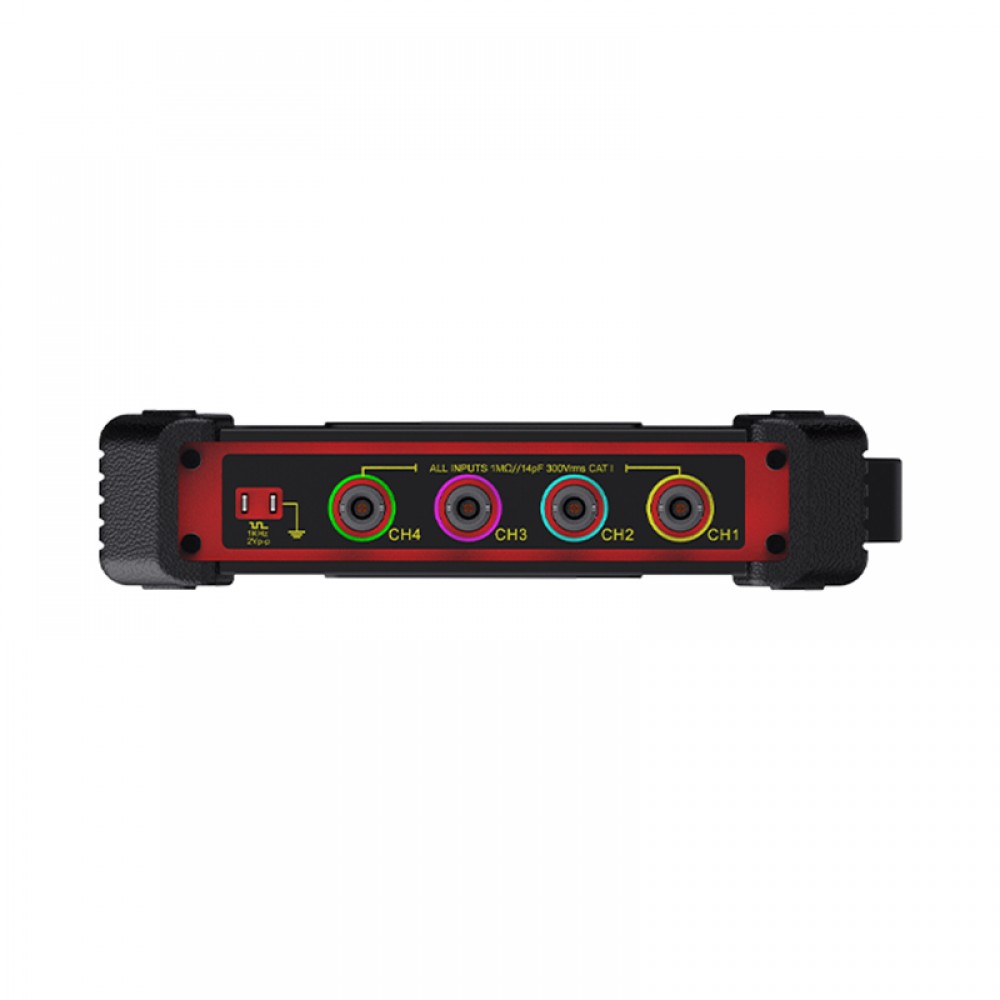

    Channels 4
    Bandwidth 100MHz
    Rising time ≤3.5ns (typical)
    Accuracy ±3%
    Input impedance 1MΩ±1.5%
    Input type Single-ended, BNC connector
    Input coupling DC, AC
    Overload protection ±200V on single input
    Timebase ranges 50ns~1ks (1 channel), 100ns~1ks (2 channels), 200ns~1ks (4 channels)
    Vertical resolution 8bits
    Buffer memory 50M (for 4 channels)
    Power interface USB port, DC IN port
    Data exchange via USB
    Trigger mode Normal, Auto and Single SEQ
    Advanced triggers Edge, Pulse width

Additional information

Weight 5 kg
